Mango Power Solar Generator 240V Kit Pro

Mango Power Solar Generator 240V Kit Pro

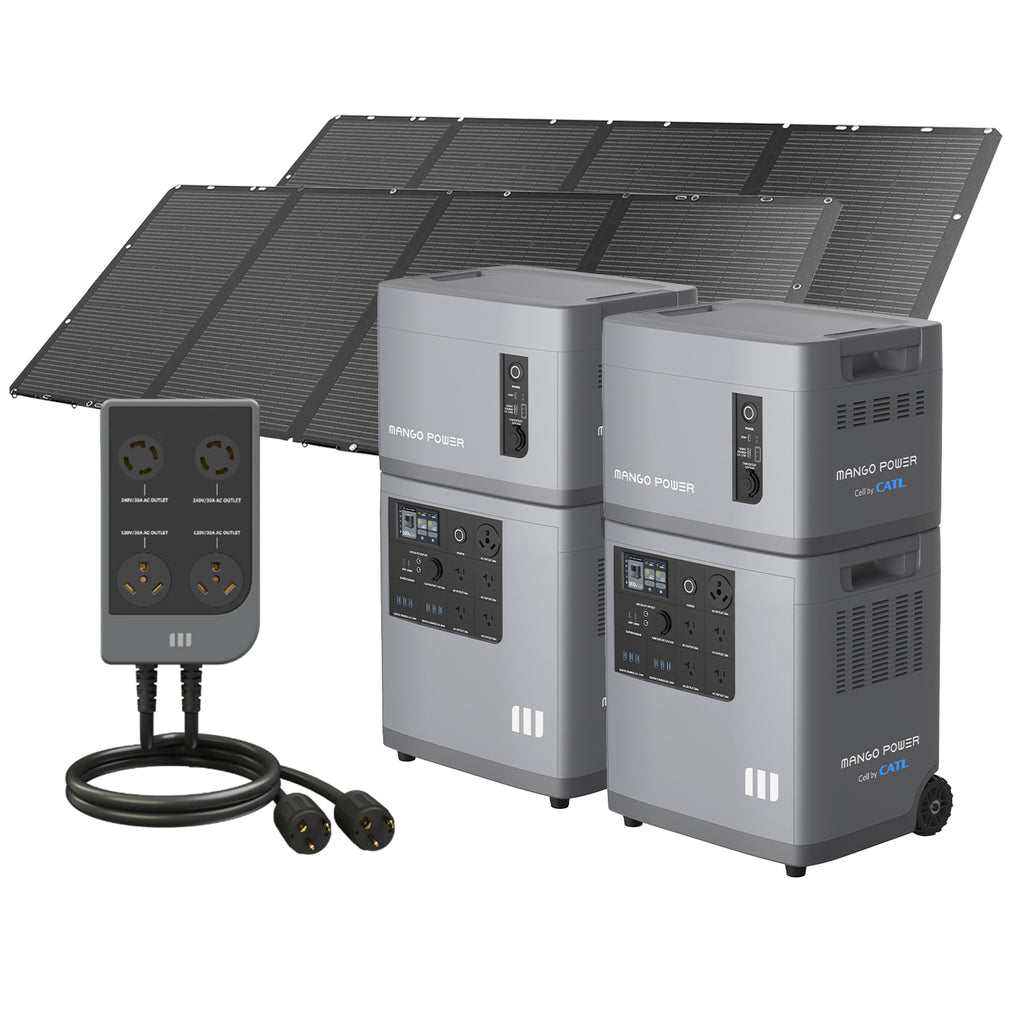

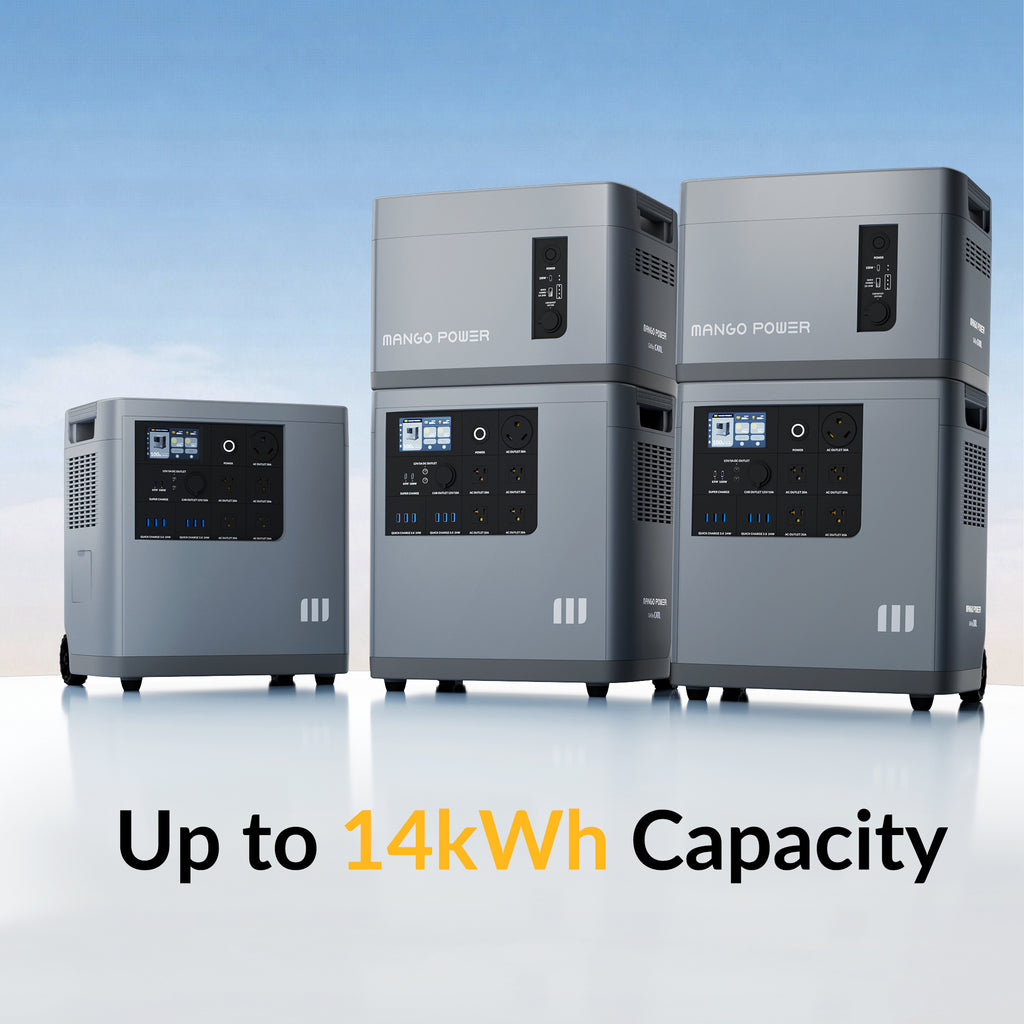

Mango Power Solar Generator 240V Kit Pro is a premium whole-home backup and off-grid power solution engineered to deliver dependable 240V split-phase power for demanding residential, RV, and emergency applications. The kit includes two Mango Power E portable power stations, two extra expansion batteries, one mSocket Pro, and two 400W portable solar panels, providing an impressive 14kWh battery capacity and up to 6,000W continuous AC output.

Designed to run high-power appliances such as central air conditioners, electric dryers, water pumps, refrigerators, and power tools, the system offers reliable backup during outages while supporting clean solar recharging. Equipped with durable CATL LiFePO₄ battery cells rated for 6,000 charge cycles, fast AC charging in as little as 1.5 hours (with the optional fast-charging cable), and up to 2,000W solar input, it combines long-lasting performance with exceptional flexibility.

Multiple AC, USB, and DC outputs, smart app control via Wi-Fi and Bluetooth, and expandable home backup capabilities make the Mango Power Solar Generator 240V Kit Pro an ideal solution for dependable, renewable energy at home or on the go.

240V Split-Phase for Heavy-Duty Appliances

With the mSocket Pro* accessory, the Mango Power E becomes a high-powered split-phase generator capable of delivering 240V output so you can run large power-consuming appliances such as heaters, dryers, water pumps, and more.

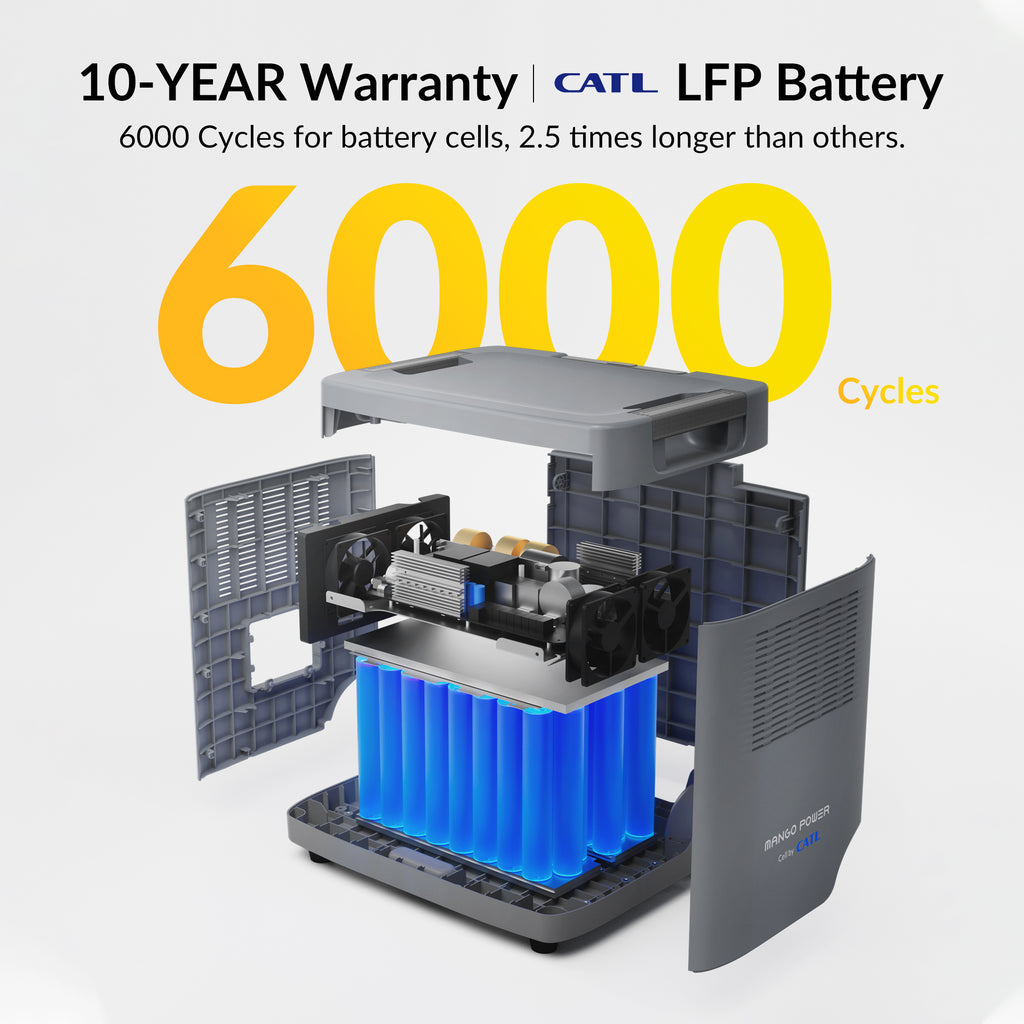

6000 Cycles LFP Cells

The Mango Power E uses the same ultra-durable LFP battery cells as the world's best EVs. These cells charge faster, last longer, and are more reliable than other traditional NCA/NCM battery cells.

Even with up to five years' continuous use, charging, discharging, and recharging constantly, the Power E's best-in-class battery cells will still perform as well as they did when brand new.

Serial and Parallel Connection

The solar input voltage range for Mango Power E is 60V-150V, with a maximum input power of 2000W. Please connect a minimum of two solar panels in series, and up to three solar panels are supported. Parallel cables are included in the accessories list.

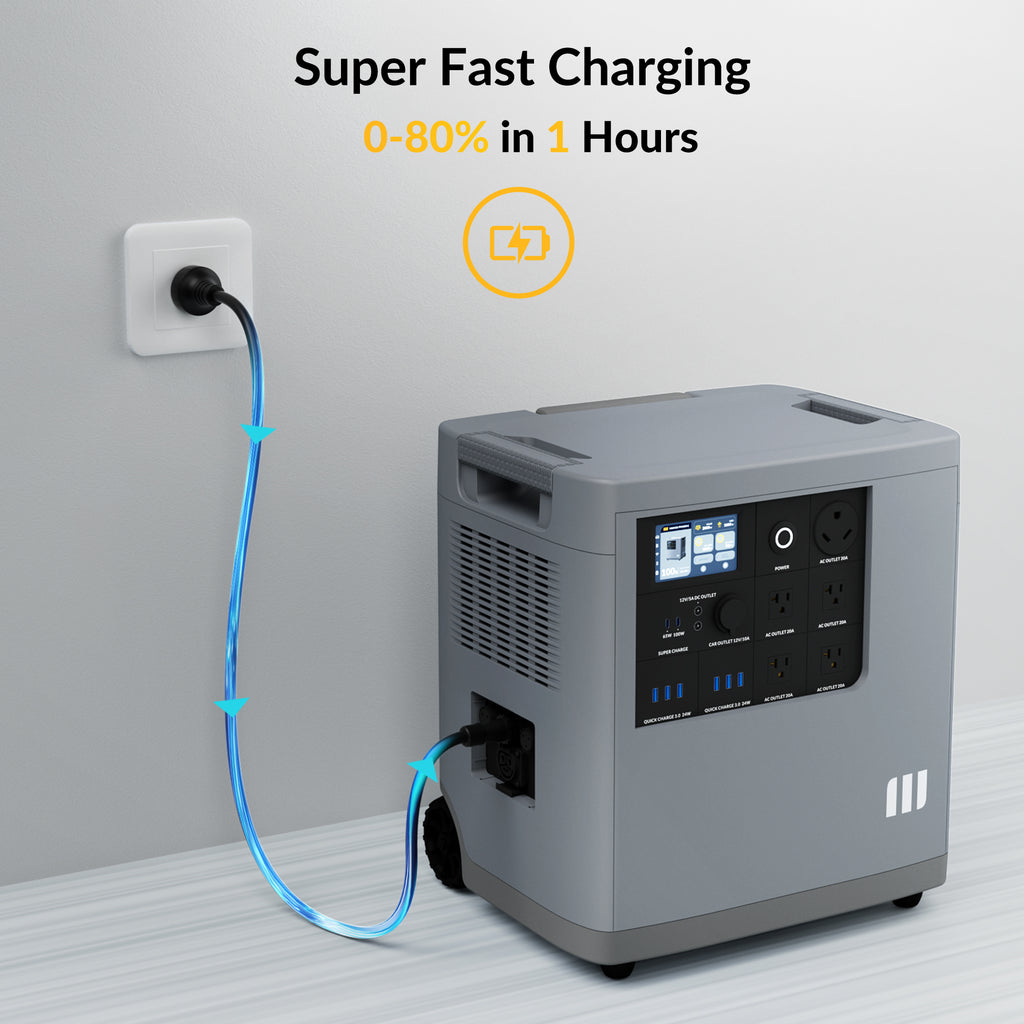

Fast Charging

With a 30A fast charging cable, at a blazing rate, going from 0-80% charged in just 60 minutes, full charge the Mango Power E needs just 1.5 hours.

Power Anywhere You Go

Built-in wheels make this portable power station easy to move, delivering reliable power anywhere from home use to outdoor adventures.

Better Environmental Adaption

CATL's batteries can withstand temperatures from -4°F to 113°F. This allows our power stations to operate smoothly even in extreme cold conditions.

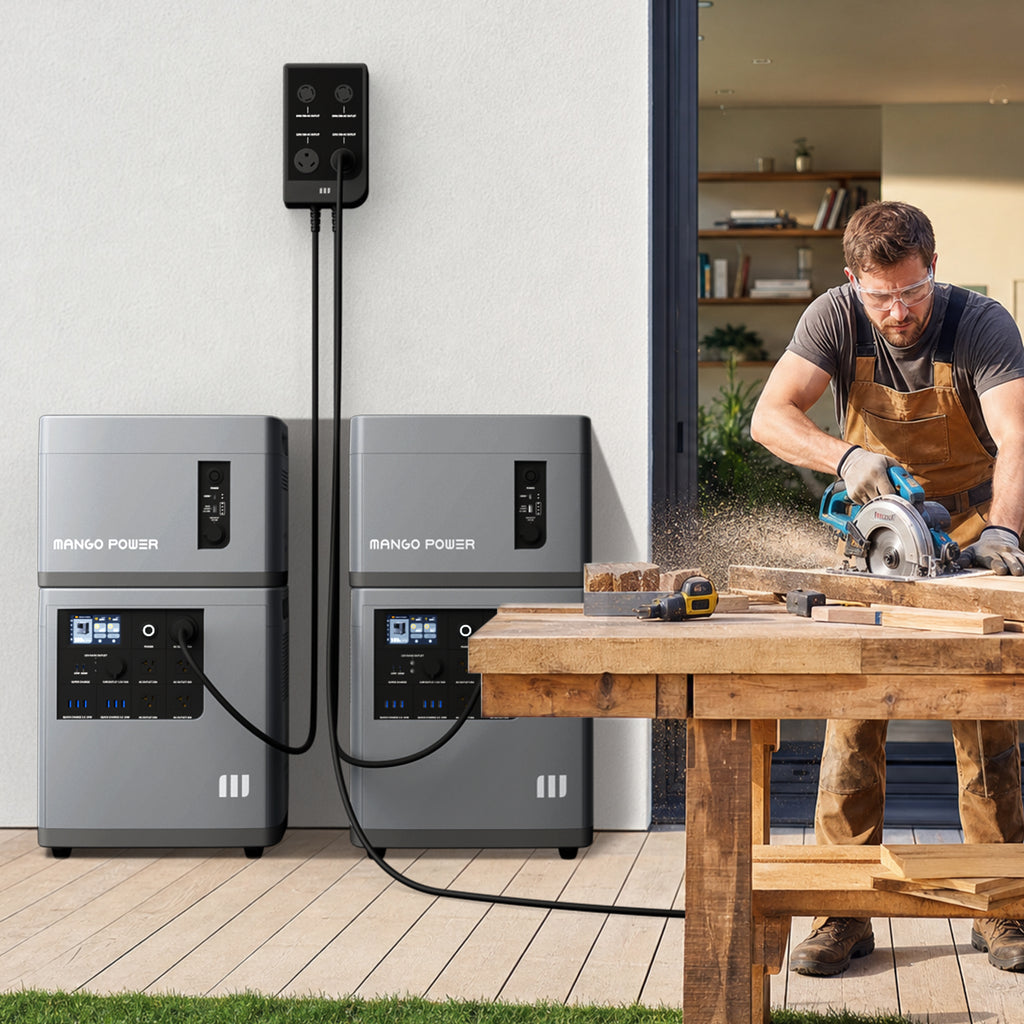

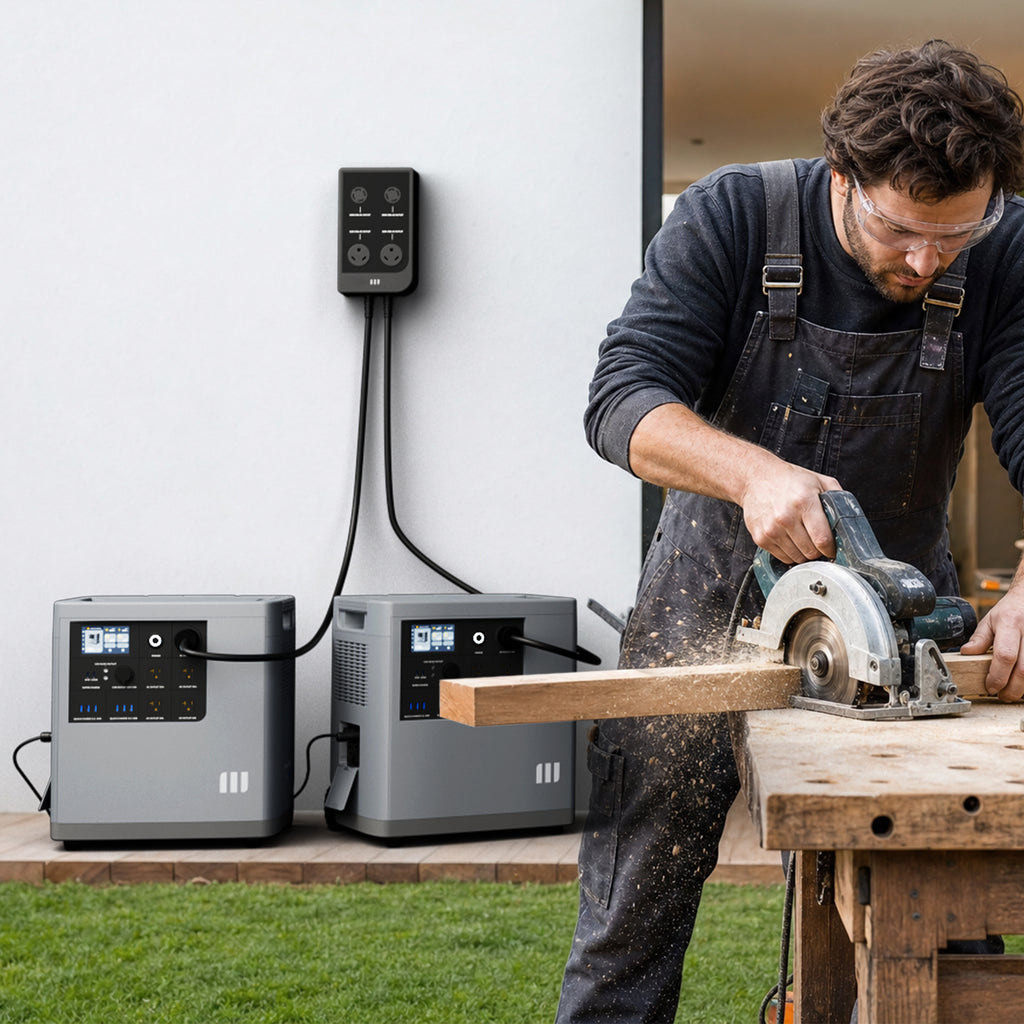

Power Your Essential Appliances in the Event of A Power Outage

By integrating Mango Power’s ecosystem into your home circuit*, you guarantee that at the moment a blackout strikes, you enjoy power security and grid independence with a seamless, uninterrupted flow of electricity powering your lights, refrigerators, computers, and any other essential devices you have plugged in.

10-Year Service life

10-YEAR CATL Battery Cell Warranty, 6000 Cycles for battery cells, over 20 Years Lifespan, 2.5 times longer than others.

Specifications:

MANGO POWER E

Capacity: 3533Wh

Solar Charging Input: Max 2000W (60V-150V)

AC Output: 4 x 20A, 3000W total

EV Charging Spot: Adapter needed

USB-A Output: 6 x QC 3.0 24W

Generator: Support

USB-C Output: 1 x PD 65W + 1 x PD 100W

Battery Chemistry: LFP

Car Power Output: 12V / 10A

Cycle Span: 6000 cycles to 70% capacity (@25 °C +0.5C/-0.5C)

DC5521 Output: 2x 12V / 5A

Connection: Wi-Fi. Bluetooth

AC RV Port: 30A

Net Weight: 100.1 lbs / 45.4kg

AC Charging Input: Max 3000W

Dimension: 17.8*13.6*19.4 in / 45.2*34.5*49.4 cm

E Expansion Battery

Battery Capacity: 3,533Wh (3.53kWh)

Battery Chemistry: CATL LiFePO₄ (LFP)

Cycle Life: 6,000 cycles to 70% capacity (@25°C, ±0.5C)

Expandable Capacity: Increases a Mango Power E from 3.53kWh to 7.06kWh

Compatibility: Mango Power E Portable Power Station

Battery Management System (BMS): Over-voltage, overload, over-temperature, short-circuit, low-temperature, low-voltage, and overcurrent protection

Connection Method: Direct plug-and-play connection using the included E+ Connection Cable

Installation: Stackable design that attaches directly beneath the Mango Power E

Operating Temperature: Designed for the same operating environment as the Mango Power E system

Warranty: 10-year CATL battery cell warranty

mSocket Pro

Input: 120V / 240V AC

Maximum Current: 50A

Connection: Plug-and-play backup interface

Output Support: 120V/240V split phase

Transfer Method: Manual switching

Compatibility: Mango Power E systems

Installation: Less invasive than a hardwired transfer panel

400W SOLAR PANEL

Model: Solar Move

Max Power (Pmax): 400W

Open-Circuit Voltage (Voc): 40.8V

Short-Circuit Current (Isc): 12.36A

Max Load Voltage (Vmp): 32.4V

Max Load Current (Imp): 11.7A

Conversion efficiency: 23%

Cell Type: Monocrystalline silicon cell

Output Interface: MC4

Operating Temperature: -20°C～60°C(-4°F～140°F)

Net Weight: 7.8kg(17.2lbs)/±5 %

Unfolded Size: 2460*970mm/±5 96.85*38.19in/±5 %

Folded Size: 972 *620*65mm/±5 % 38.27*24.41*2.56in/±5 %

Warranty: 18 Months

What's in the Box:

2 × Mango Power E

2 × E Expansion Battery

1 × mSocket Pro

2 × Mango Power Ultra-Light Portable Solar Panel 400W

Connection cables

AC charging cables

User manuals

Warranty cards
