2* Mango Power E + 2* E Extra Battery + mSocket Pro

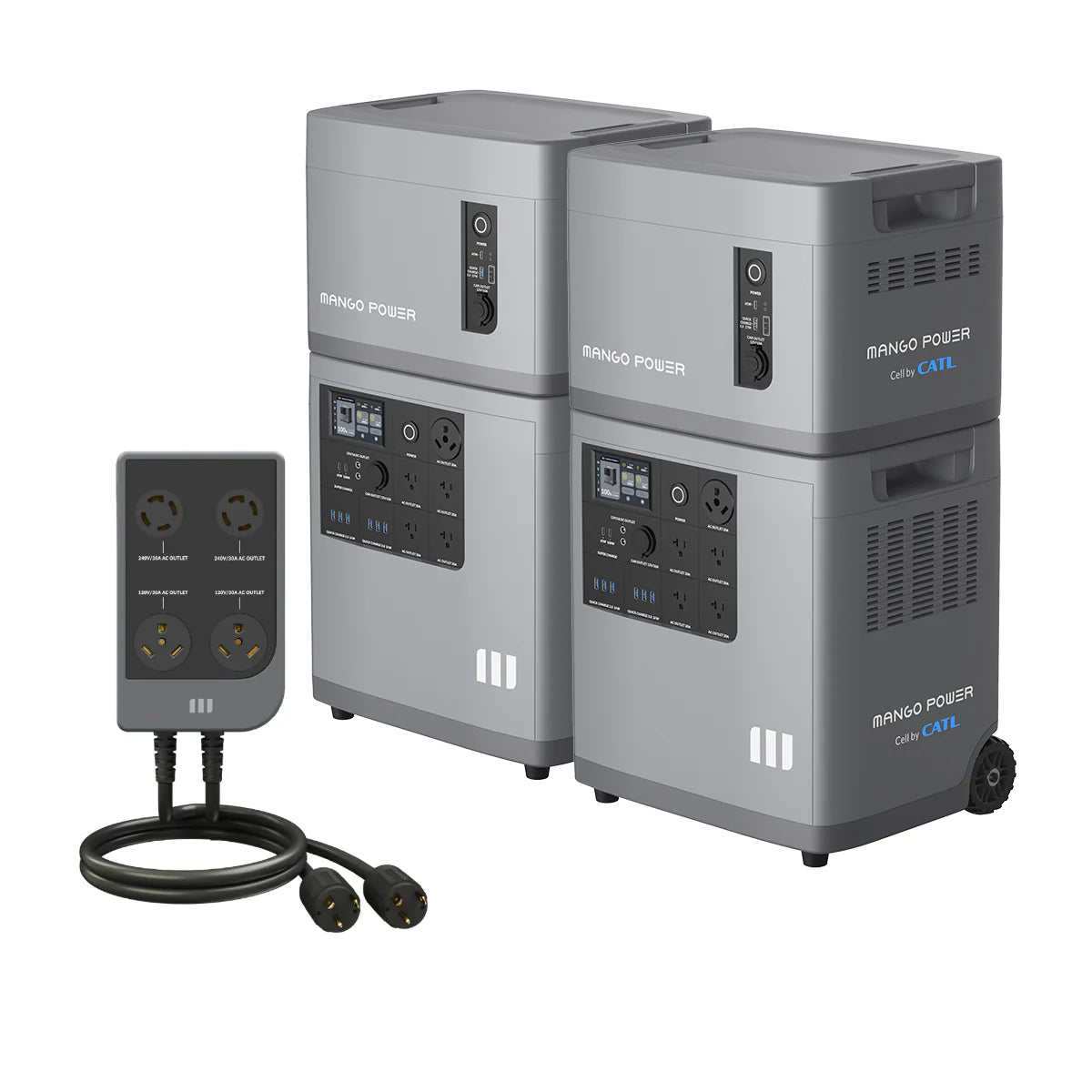

2× Mango Power E + 2× E Extra Battery + mSocket Pro package is a high-capacity residential backup power solution designed to deliver reliable whole-home energy during outages and emergencies. The system combines two Mango Power E portable power stations, two E Extra Batteries, and the mSocket Pro smart connection system, providing a total energy storage capacity of 14.1kWh and up to 6,000W continuous AC output with 120V/240V split-phase power support.
Each Mango Power E is paired with an E Extra Battery, expanding the capacity of each unit from 3.53kWh to 7.06kWh. When connected together through the mSocket Pro, the system can supply power to essential household appliances such as refrigerators, freezers, lighting circuits, networking equipment, home office devices, and other critical loads. The dual-unit configuration also enables support for higher-power appliances requiring 240V operation.

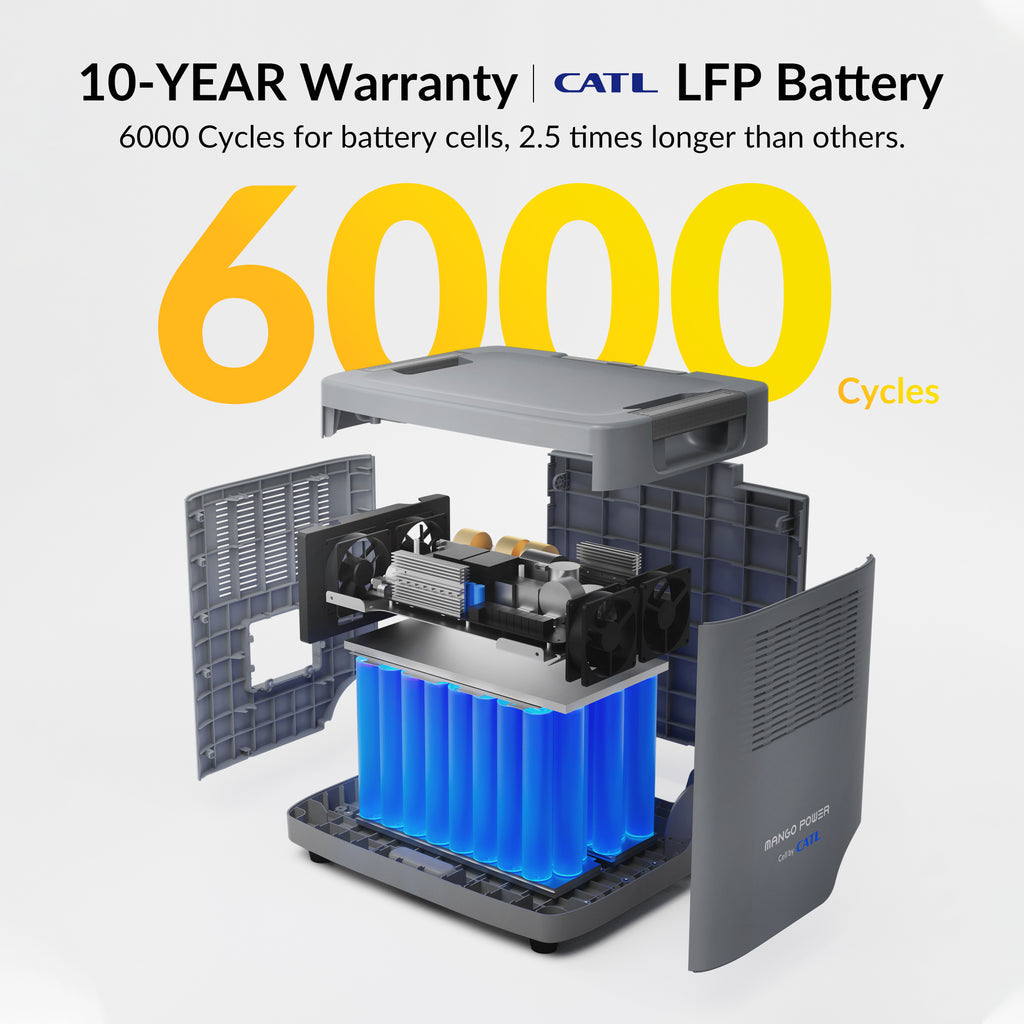

Built with long-life CATL LiFePO₄ battery cells, the system is rated for up to 6,000 charge cycles, ensuring years of dependable service. Fast AC charging, solar charging compatibility, intelligent battery management, and remote monitoring through the Mango Power mobile app provide flexible energy management whether used as a home backup system or an off-grid power solution.

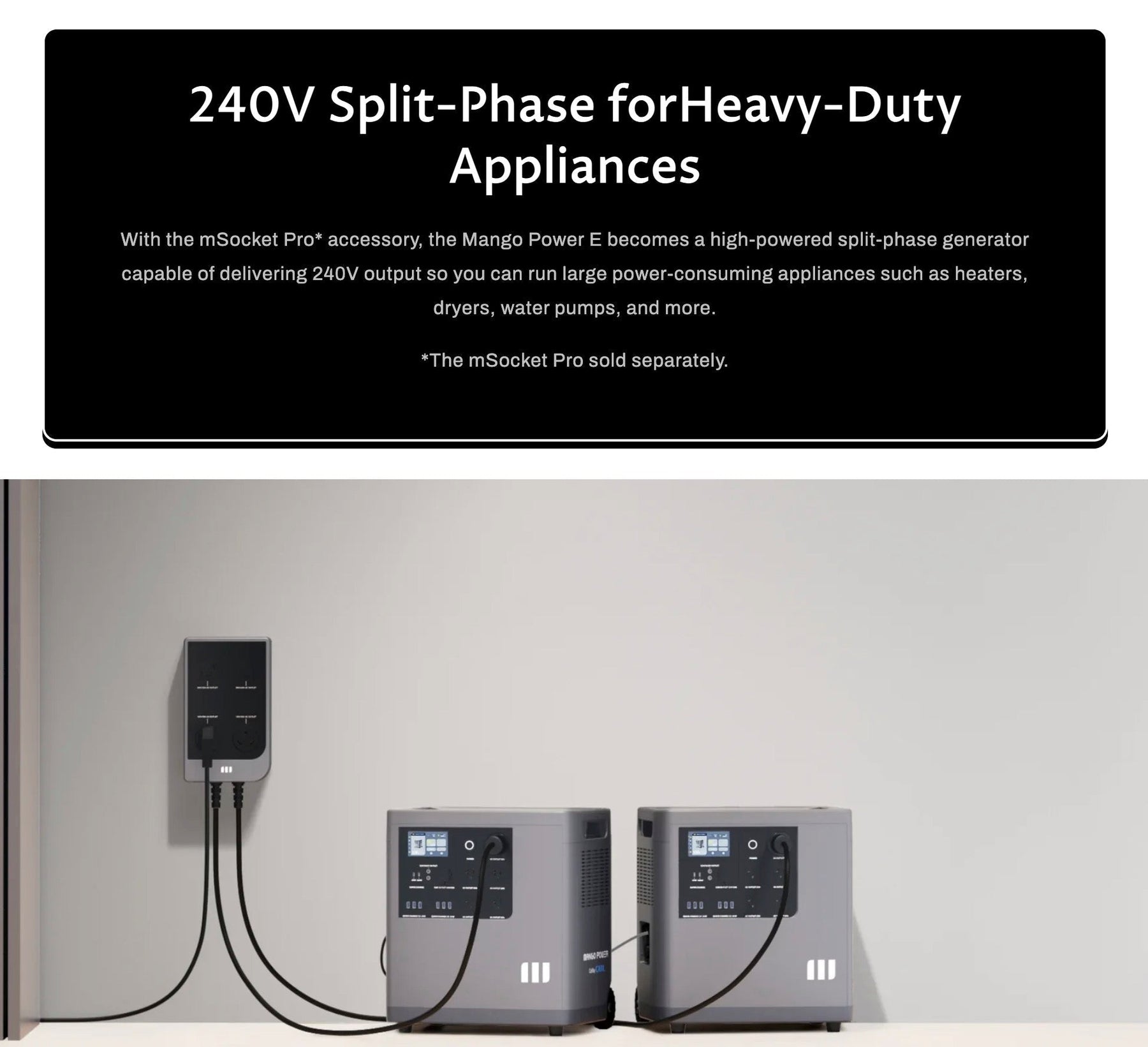

The mSocket Pro enables safe integration of the Mango Power system with a home's electrical infrastructure, allowing users to connect backup power more conveniently while maintaining portability and expandability. Together, the two Mango Power E units, two expansion batteries, and mSocket Pro create a powerful, scalable energy ecosystem capable of supporting household energy needs during extended power interruptions.
Specifications:

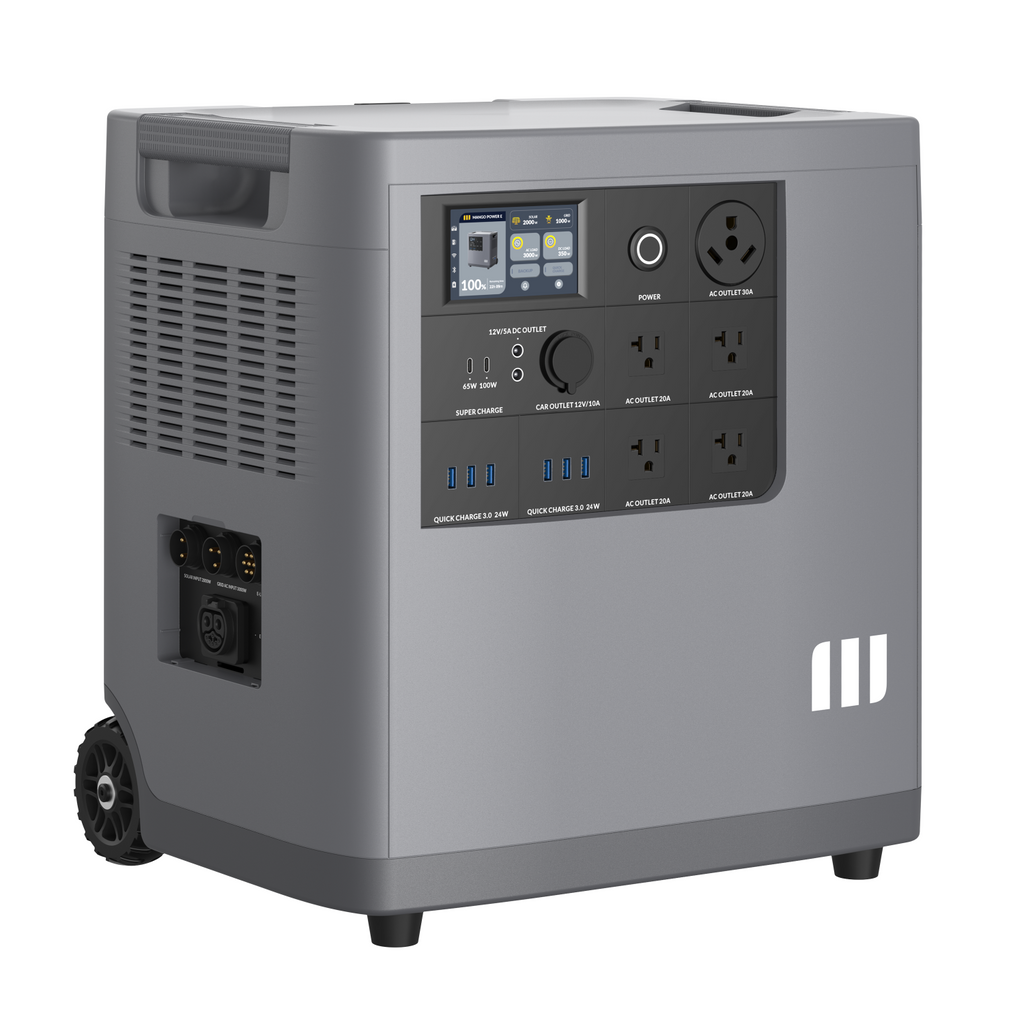

MANGO POWER E

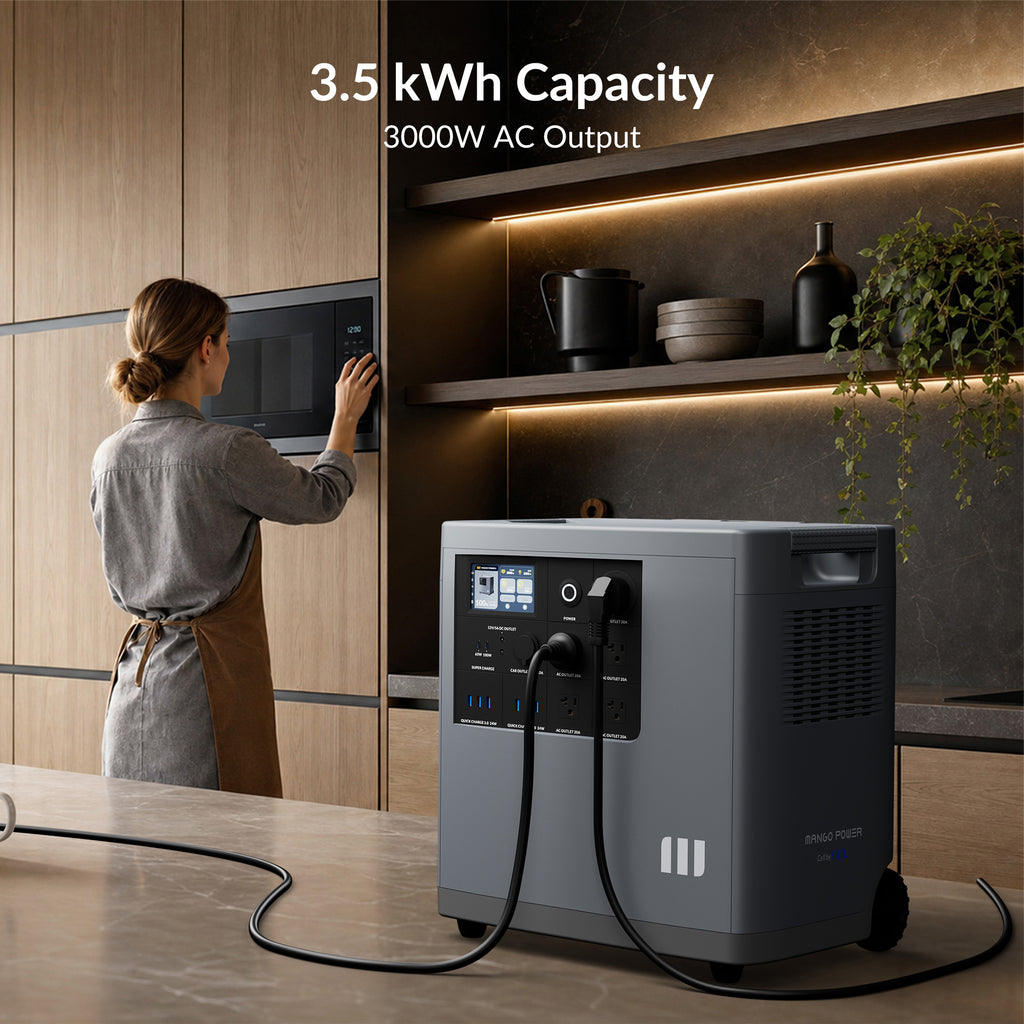

Capacity: 3533Wh
Solar Charging Input: Max 2000W (60V-150V)
AC Output: 4 x 20A, 3000W total
EV Charging Spot: Adapter needed
USB-A Output: 6 x QC 3.0 24W
Generator: Support
USB-C Output: 1 x PD 65W + 1 x PD 100W
Battery Chemistry: LFP
Car Power Output: 12V / 10A
Cycle Span: 6000 cycles to 70% capacity (@25 °C +0.5C/-0.5C)
DC5521 Output: 2x 12V / 5A
Connection: Wi-Fi. Bluetooth
AC RV Port: 30A
Net Weight: 100.1 lbs / 45.4kg

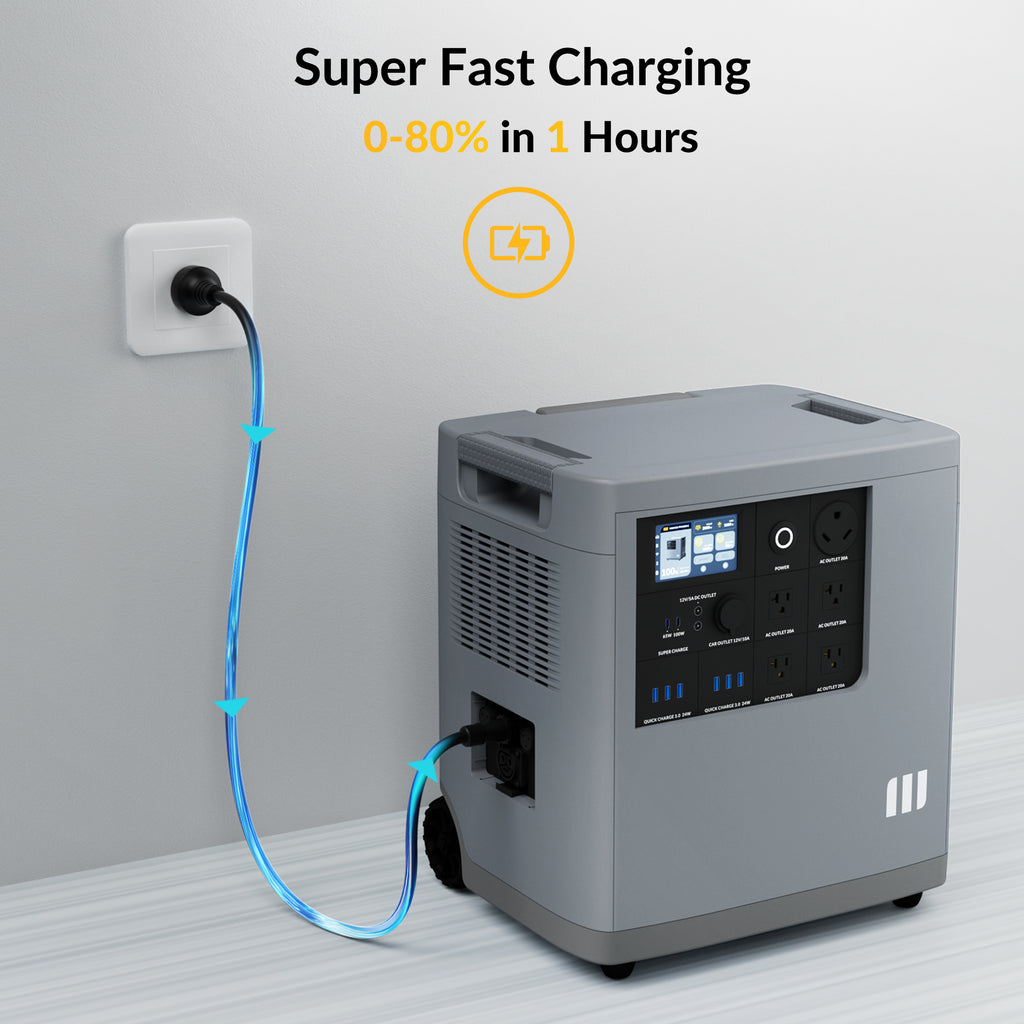

AC Charging Input: Max 3000W
Dimension: 17.8*13.6*19.4 in / 45.2*34.5*49.4 cm

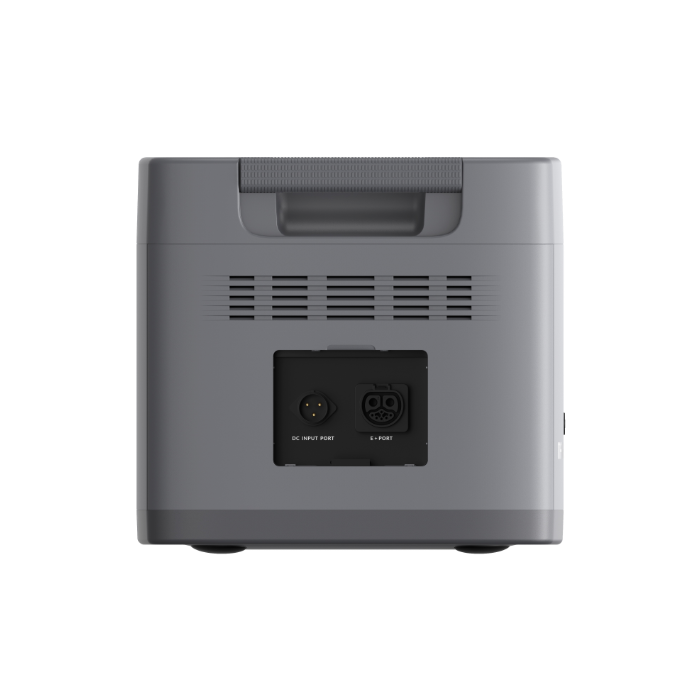

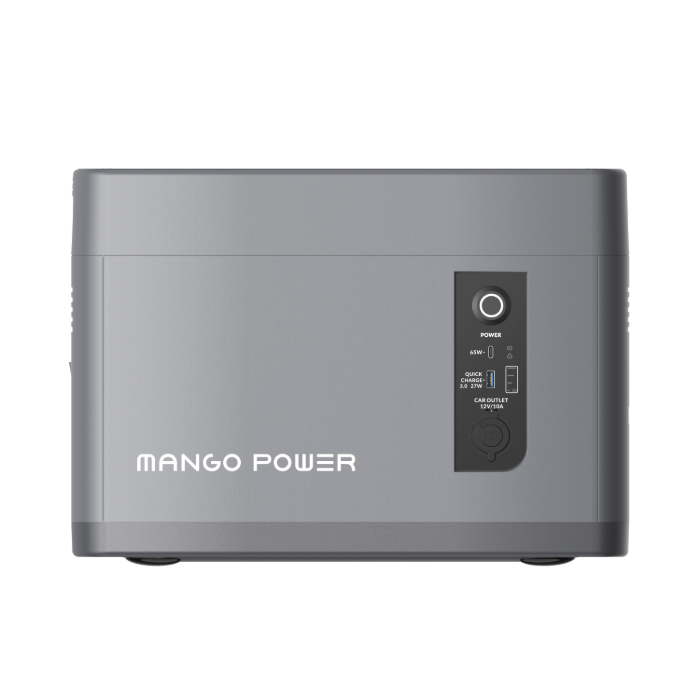

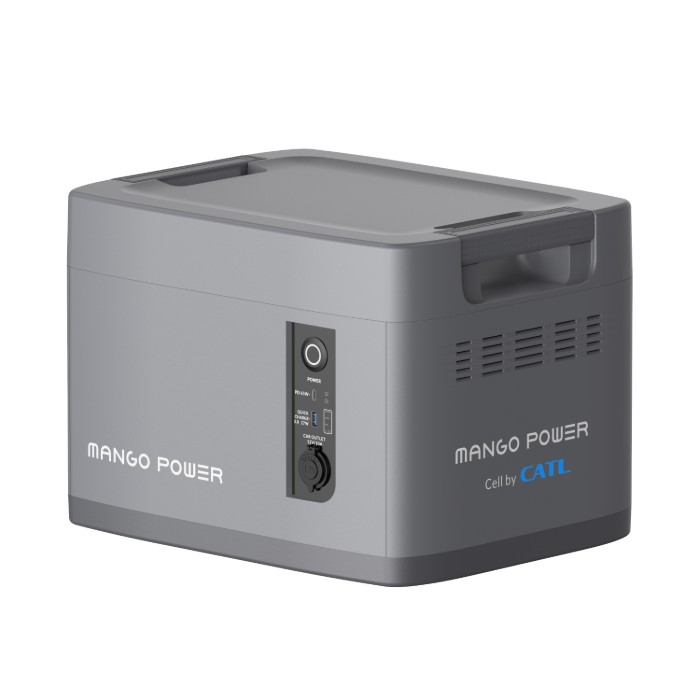

E Expansion Battery
Battery Capacity: 3,533Wh (3.53kWh)
Battery Chemistry: CATL LiFePO₄ (LFP)
Cycle Life: 6,000 cycles to 70% capacity (@25°C, ±0.5C)
Expandable Capacity: Increases a Mango Power E from 3.53kWh to 7.06kWh
Compatibility: Mango Power E Portable Power Station
Battery Management System (BMS): Over-voltage, overload, over-temperature, short-circuit, low-temperature, low-voltage, and overcurrent protection
Connection Method: Direct plug-and-play connection using the included E+ Connection Cable
Installation: Stackable design that attaches directly beneath the Mango Power E
Operating Temperature: Designed for the same operating environment as the Mango Power E system
Warranty: 10-year CATL battery cell warranty
mSocket Pro
Input: 120V / 240V AC
Maximum Current: 50A
Connection: Plug-and-play backup interface
Output Support: 120V/240V split phase
Transfer Method: Manual switching
Compatibility: Mango Power E systems
Installation: Less invasive than a hardwired transfer panel
What's in the Box:
2 × Mango Power E
2 × E Expansion Battery
1 × mSocket Pro
Connection cables
AC charging cables
User manuals
Warranty cards
