Reinforced 50FT x 40FT x 17FT Double Truss Container Shelter

$9,190.00 $5,514.00 Save $3,676.00
/
Tax included. Shipping calculated at checkout.
Only 0 items in stock!

Description

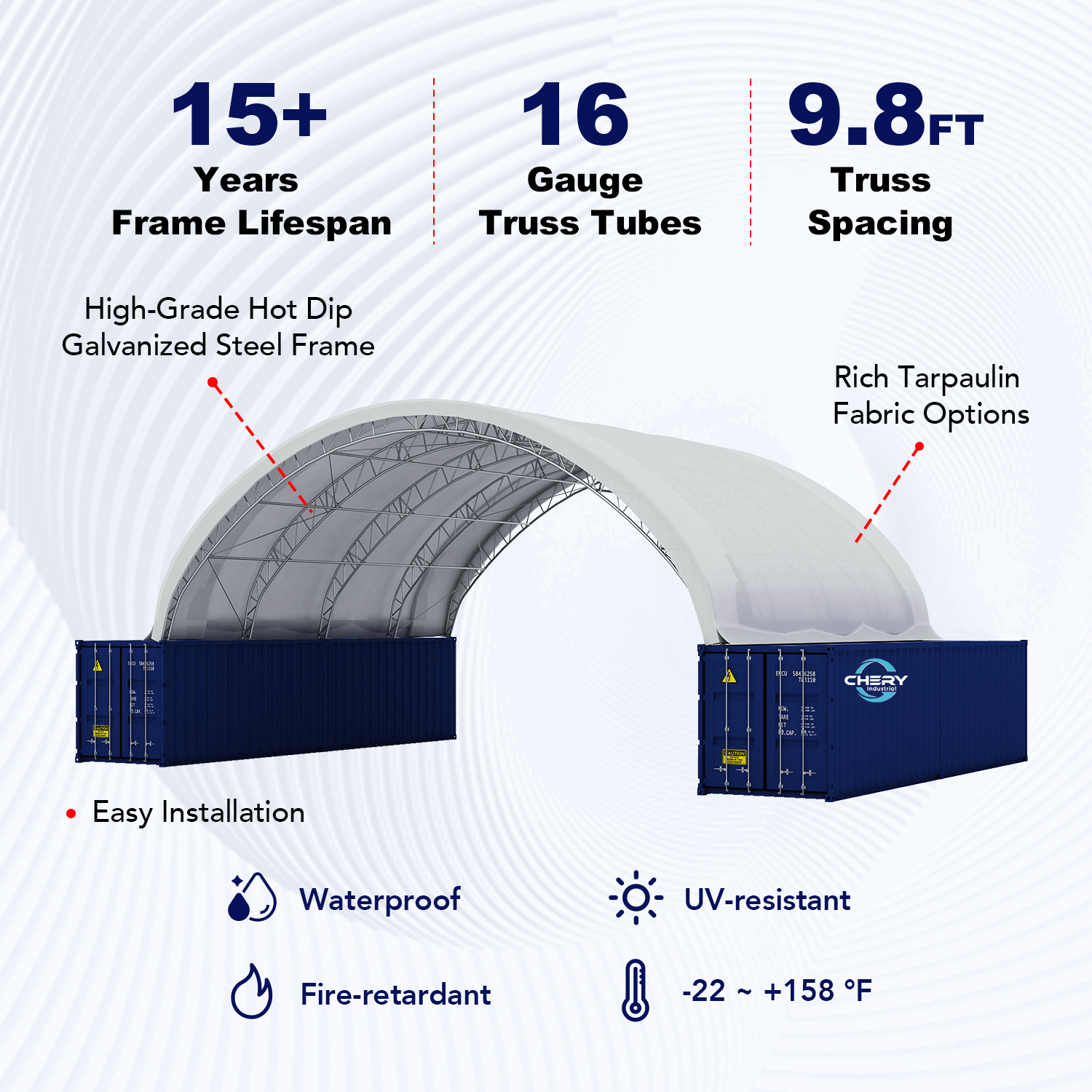

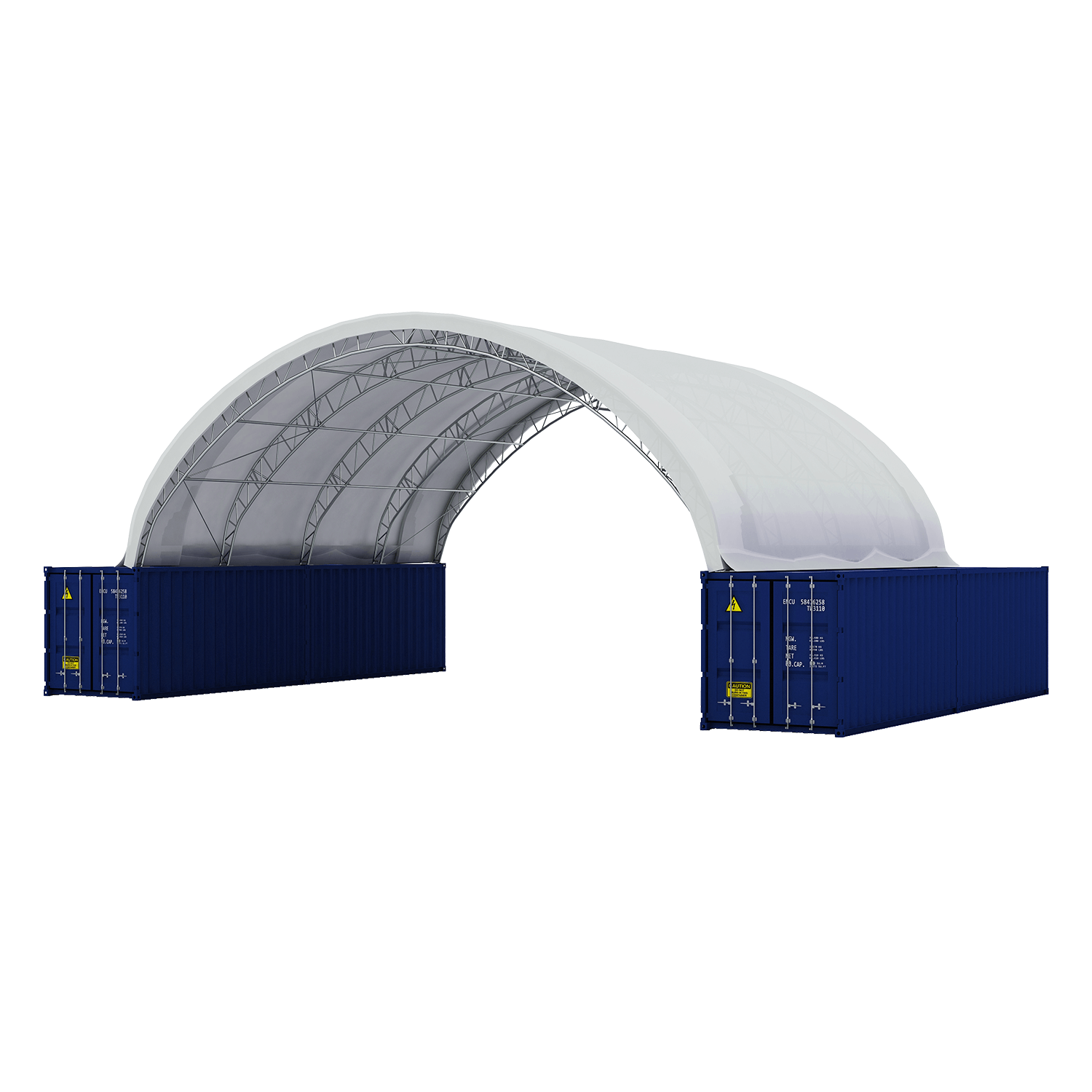

The Fortified 50'x40'x17' Double Truss Container Shelter is designed to withstand harsh conditions and heavy usage. Its advanced frame features an arch with a shrink head and jacket for added strength, while the arch is supported by diagonal steel pipes on both sides, enhancing overall stability. With a robust construction of Arch Ø60x1.5 and Purlin Ø48x1.5, this shelter ensures maximum structural integrity and resilience against wind, snow, and other environmental stressors.

Double Truss
Thanks to careful hot-dip galvanization, the frame is optimally protected against corrosion and rust. Double trusses also run throughout the whole interior of the structure, which reinforces its exceptional durability and stability.

Frame Connectors
Robust connecting elements ensure high overall stability. The careful bolting of the elements and self-locking nuts reduce maintenance.

Ratchet Tensioners
Additional tensioning straps ensure optimum tautness.





Specifications

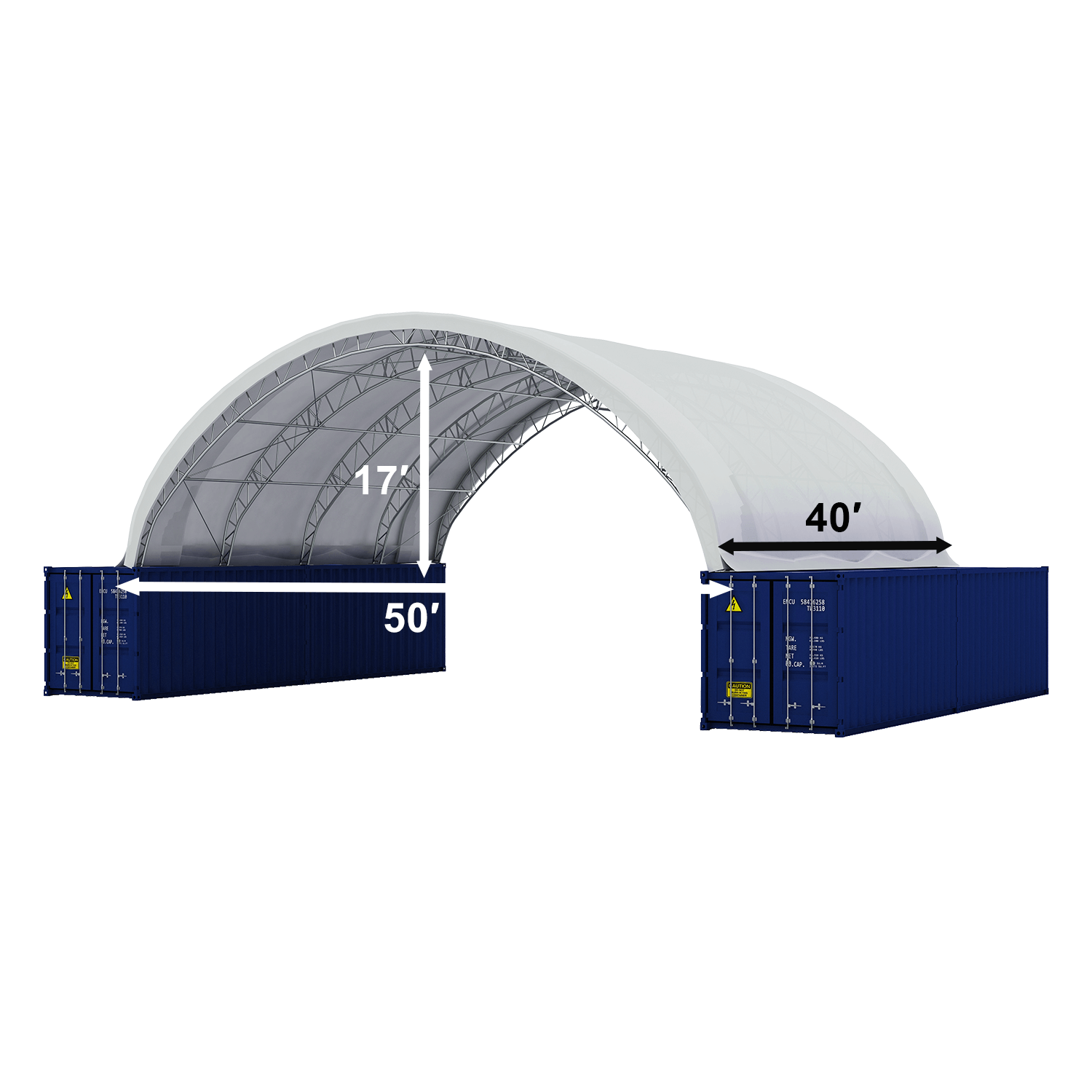

  • Dimension (ft): W50xL40xH17
  • Frame: Double Truss Galvanized Tube
  • Steel Structure: High-Grade Hot Dip Galvanized Steel
  • Truss Spacing: 9.8 ft
  • Arch Ø (mm): Ø60x1.5
  • Purlin Ø (mm): Ø48x1.5
  • Snow Load: 25 lbs/ft²
  • Wind Load: 49.4 miles/h
  • Temperature Resistance: -22 - +158 °F
  • Tension System: Pipe and Ratchet Tie-Down System
  • Easy Installation: Twist lock and clamp installation
  • Tarp Lifespan: 7-10 years*
  • Frame Lifespan: 15+ years
  • Warranty: PE: 2 Years Warranty; PVC: 8 Years Warranty

Shipping


US warehouse dispatch, Fulfillment time: 6-10 business days
Package size:

  • LxWxH (inch): 124x43x64(22oz)
  • Weight (lb): 3197(18oz)/3450(22oz)

A forklift or equivalent is required for unloading.
