Bluetti to Puerto Rico - EnergyPro 13K+2*EnergyPack 500

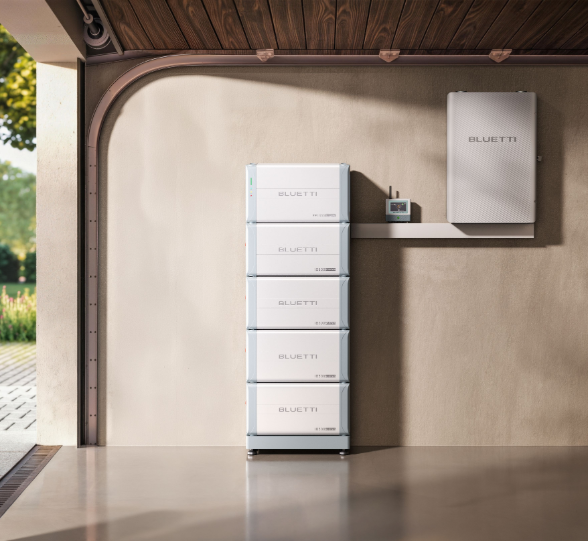

BLUETTI EnergyPro13K is a complete Whole-Home ESS that streamlines your home energy management and storage. It has three parts: the EnergyPro 13K hybrid inverter, EnergyPack 500 battery pack, and the AT1 Smart Distribution Panel. It lets you prepare for power outages, optimize energy usage, and maximize solar savings—all in one go.
One System for Your Entire Home
No more complex rewiring—one simple system does it all. The EP13K outputs up to 13.2 kW power, a 47% boost over the last model, backing up your whole house with ease. Heavy-duty appliances like a 5‑ton A/C or pool pump stay running during outages.
Up to 22 kW Solar Maximization
Through DC or AC coupling, the EP13K can support 70 rooftop solar panels, helping large houses and villas achieve solar self-consumption. With 4 MPPT channels, it adapts to even the most complex roof designs, capturing every drop of sunlight for a full recharge in 1.5 hours.

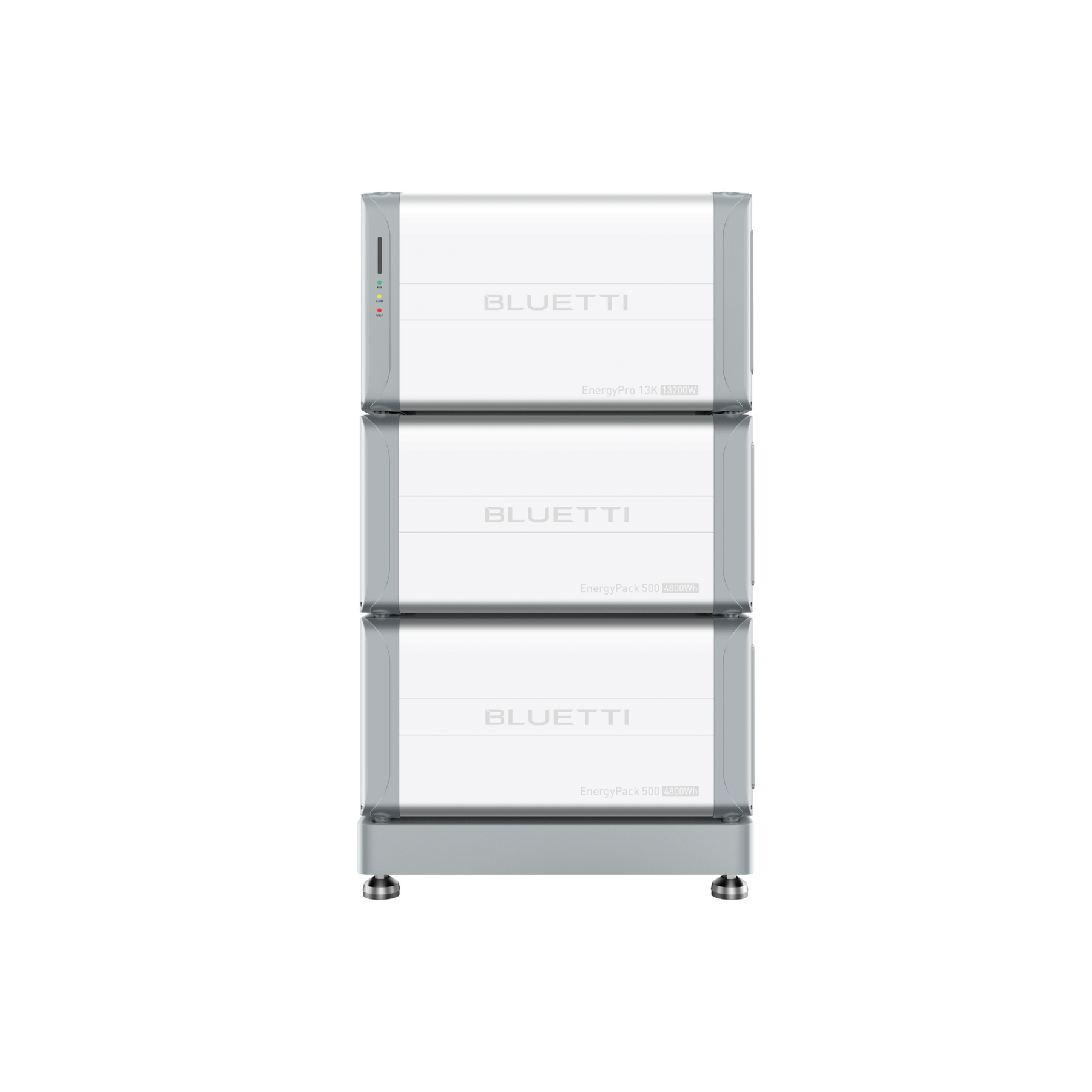

On-Demand Storage Expansion, Anytime
Pay only for the capacity you need. The modular design lets you configure 2–4 EnergyPack 500 batteries, expanding from 9.6 kWh to 19.2 kWh as your needs grow. Its built‑in DC‑DC module keeps every upgrade smooth, safe, and performance‑ready through the system's full lifespan.
Storm-Ready, Intelligent Backup
When severe weather approaches, the EP13K takes care of itself—so you can focus on your day. No more guessing, no more last-minute preparations.
Turn Your Generator or EV into Backup Power
Use your generator or EV as extra backup power. Charge your battery while powering your home. More energy when you need it, with zero hassle.
Specifications:

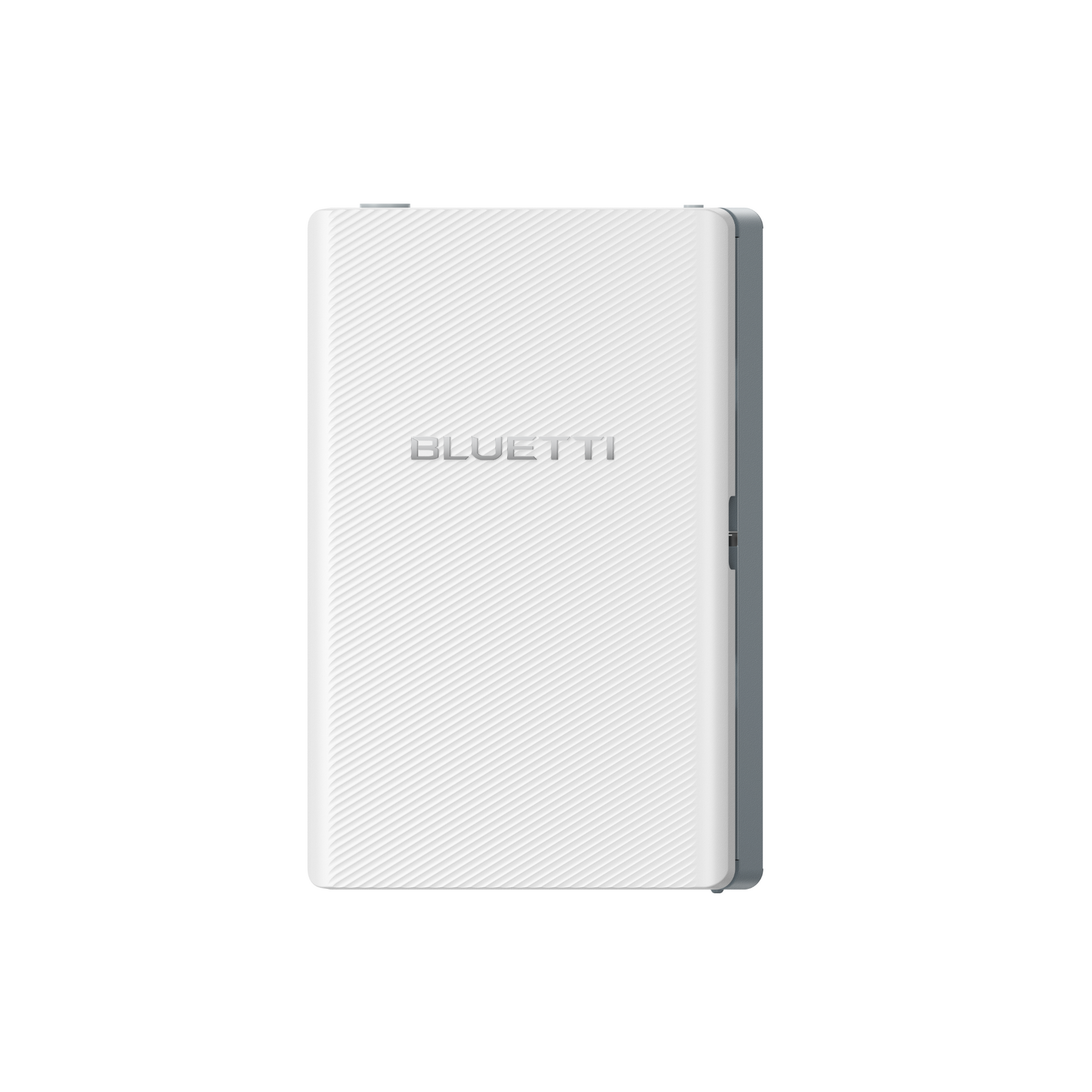

EnergyPro 13K Hybrid Inverter
Operating Temperature: -4℉ to 131℉
Noise: ≤50 dB (A)
Net Weight: 105lbs (48 kg)
Cooling: Forced Air Cooling
Connectivity: USB/Wi-Fi/Bluetooth
Protection Grade: NEMA 4X
Warranty: 10 Years
Dimensions: 25.0 × 12.8 × 14.6 in
Rated Frequency: 60 Hz
UPS Time: ＜20ms
Split Phase: L1/L2/N/G
Max. Continuous Input Current: 155 A
PV INPUT (DC-Coupled)
Max. Power: 22 kW
MPPT Voltage Range: 100 V–480 V/350 V
MPPT Channel: 4
Single MPPT Input Current: 15 A Max.
Single MPPT Short Circuit Current: 18 A Max.
AC OUTPUT (Backup)
Rated Power: 13.2 kW
Continuous Current: 55 A × 2
Load Start Capability: 150 LRA
Rated Voltage: 120 V/240 V
Frequency: 60 Hz
EnergyPack 500 Battery Pack
Battery Chemistry: LiFePO₄
Capacity: 4.8 kWh
DOD: 95%
Net Weight: 127.8 lbs
Protection Grade: NEMA 4X
Dimensions: 25.0 × 12.8 × 13.3 in

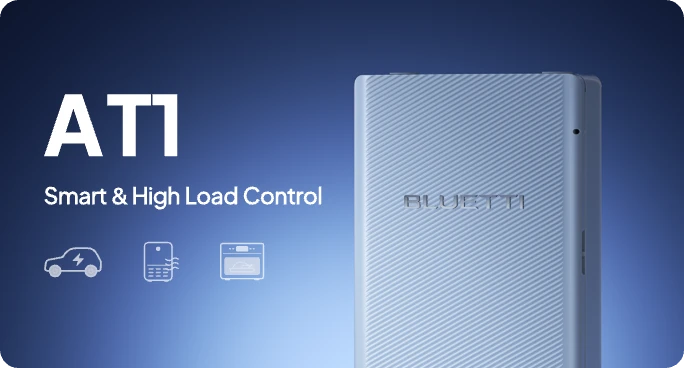

AT1 Smart Distribution Panel
Operating Temperature: -4°F to 122°F
Communication:
General: Bluetooth/Wi-Fi/Ethernet/4G; EV: RS485
Protection Grade: NEMA 3R
Warranty: 10 years
Dimensions: 21.7 × 6.4 × 31.5 in
Net Weight: 56.44lbs
Compatibility: EnergyPro 6K/EnergyPro 13K/Apex 300
Electrical Coupling: AC-Coupling
Split Phase: L1/L2/N/G
Current Rating: 200 A
Rated Voltage: 120 V/240 V
Rated Frequency: 60 Hz
UPS Time: ＜20ms
Grid/Backup Current: 160 A Continuous (200 A Max.)
ESS Current: 2 × 80 A Continuous (2 × 100 A Max.)
Generator Current: 64 A Continuous (80 A Max.)
Solar Current (Microinverters): 64 A Continuous (80 A Max.)
Smart-Load Current: 64 A Continuous (80 A Max.)
What's in the Box:
1 × EnergyPro 13K Hybrid Inverter
2 × EnergyPack 500 expansion batteries
1 x AT1 Smart Distribution Panel
1 x Battery connection cables
1 x AC/PV connection hardware
1 x Wall/base mounting accessories
1 x User manuals & warranty documents
