40FT x 40FT x 15FT Container Shelter with Closed Back Panel

$9,598.00 $5,758.80 Save $3,839.20
/
Tax included. Shipping calculated at checkout.
Only 0 items in stock!

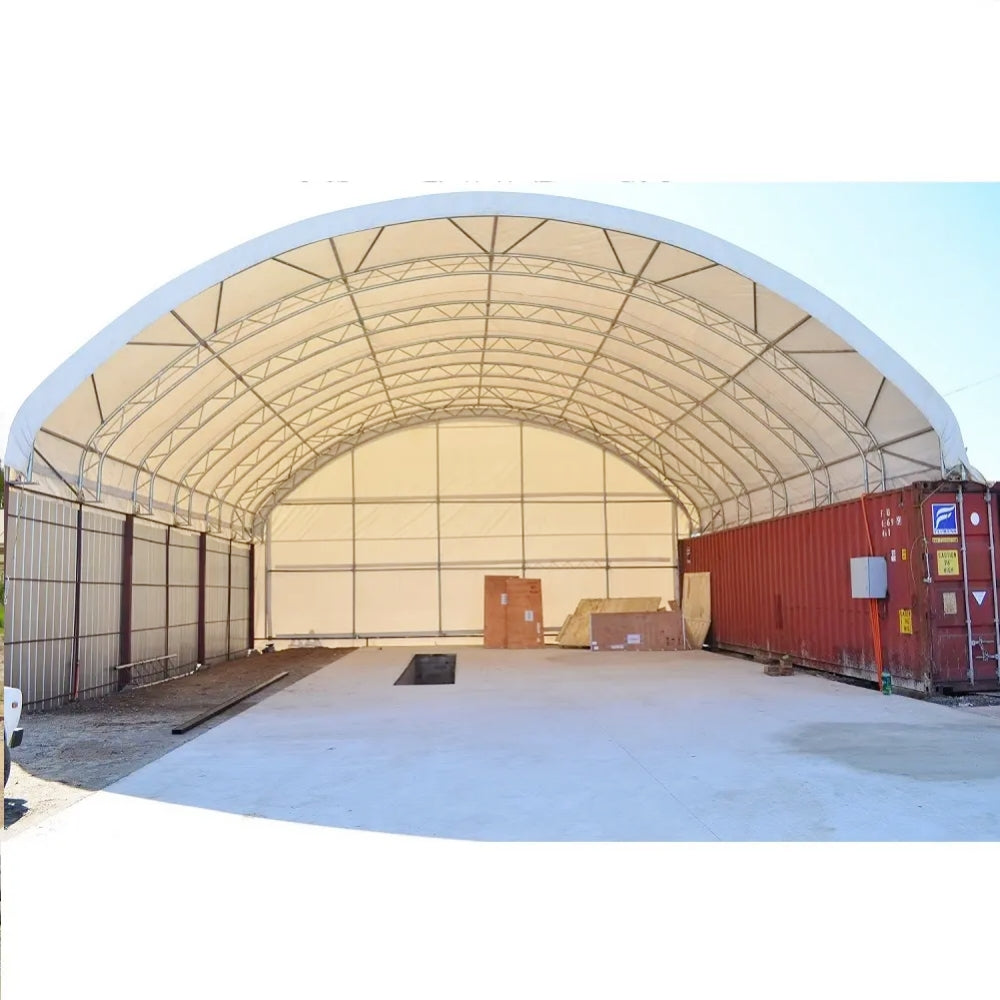

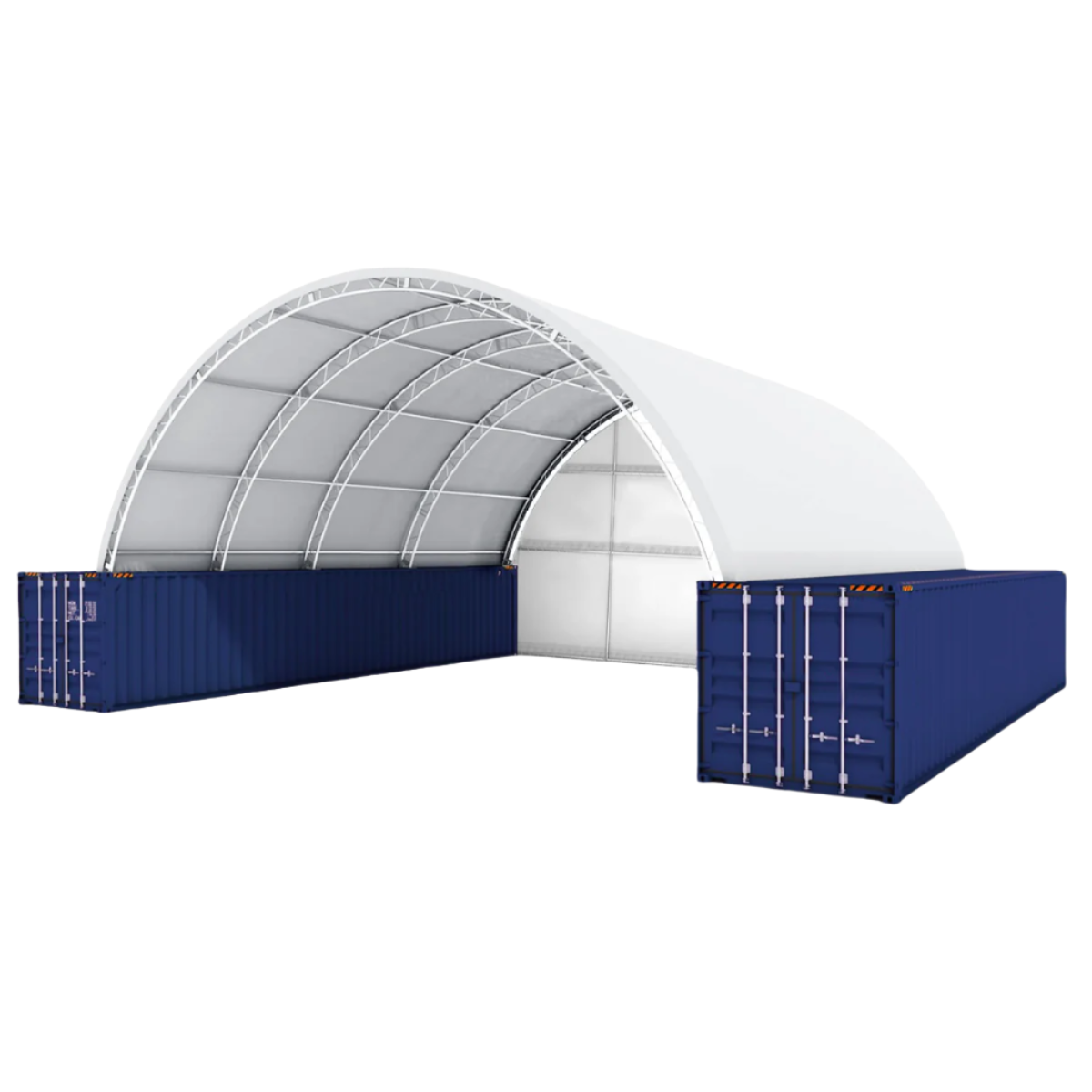

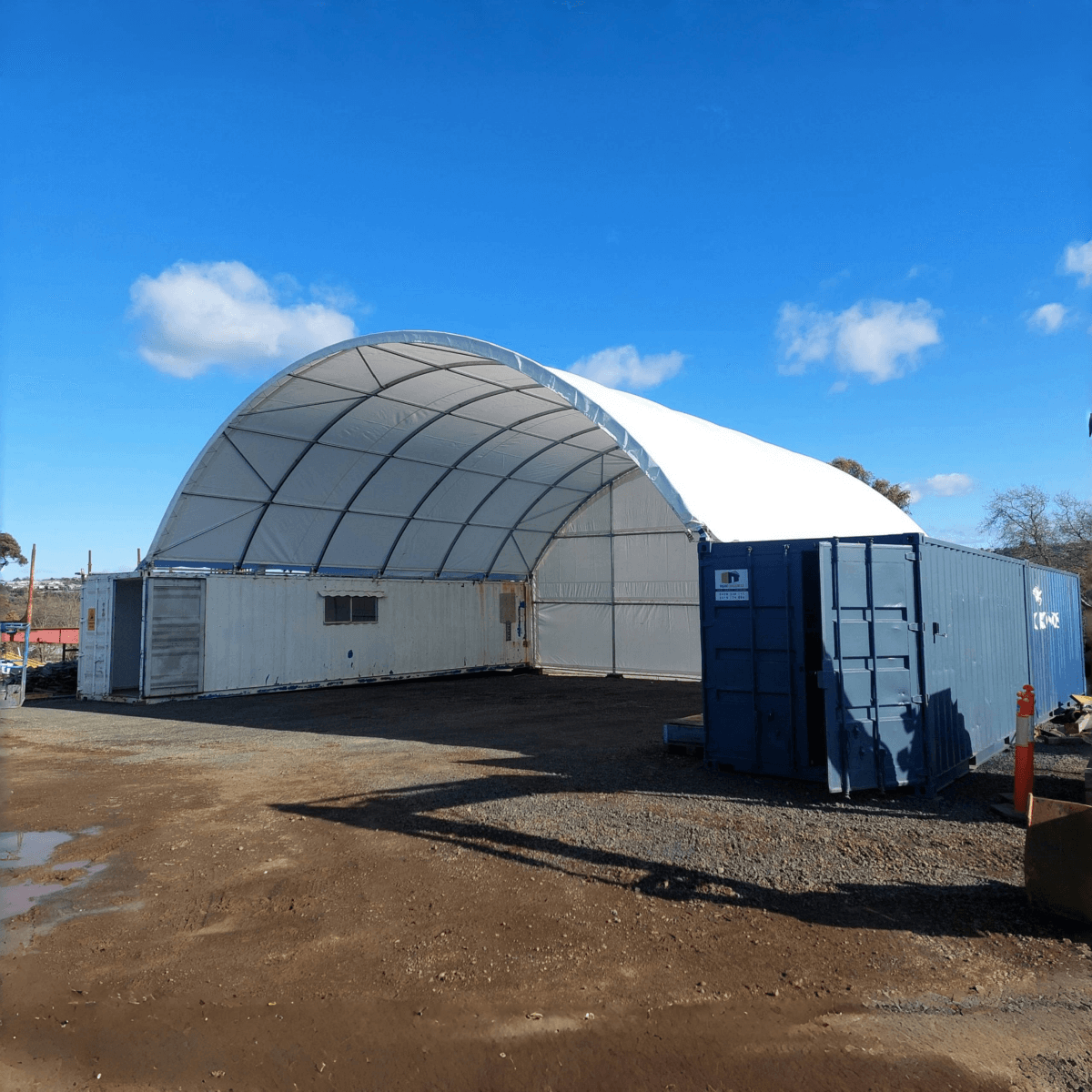

Introducing our 40x40x15 ft Container Shelter with Closed Back Panel, designed for robust protection and versatile storage. This durable structure features a closed back panel for enhanced security and weather resistance. Ideal for industrial, commercial, or personal use, it offers ample space and a sturdy galvanized steel frame for long-lasting reliability and performance.

Installation Manual

DoubleTruss-Container-Canopy-Shelter-W40xL40xH15ft-A+



Shelter-Certificate-Logo



Specification

Description Specifications
Model C404015 Dome Container Shelter

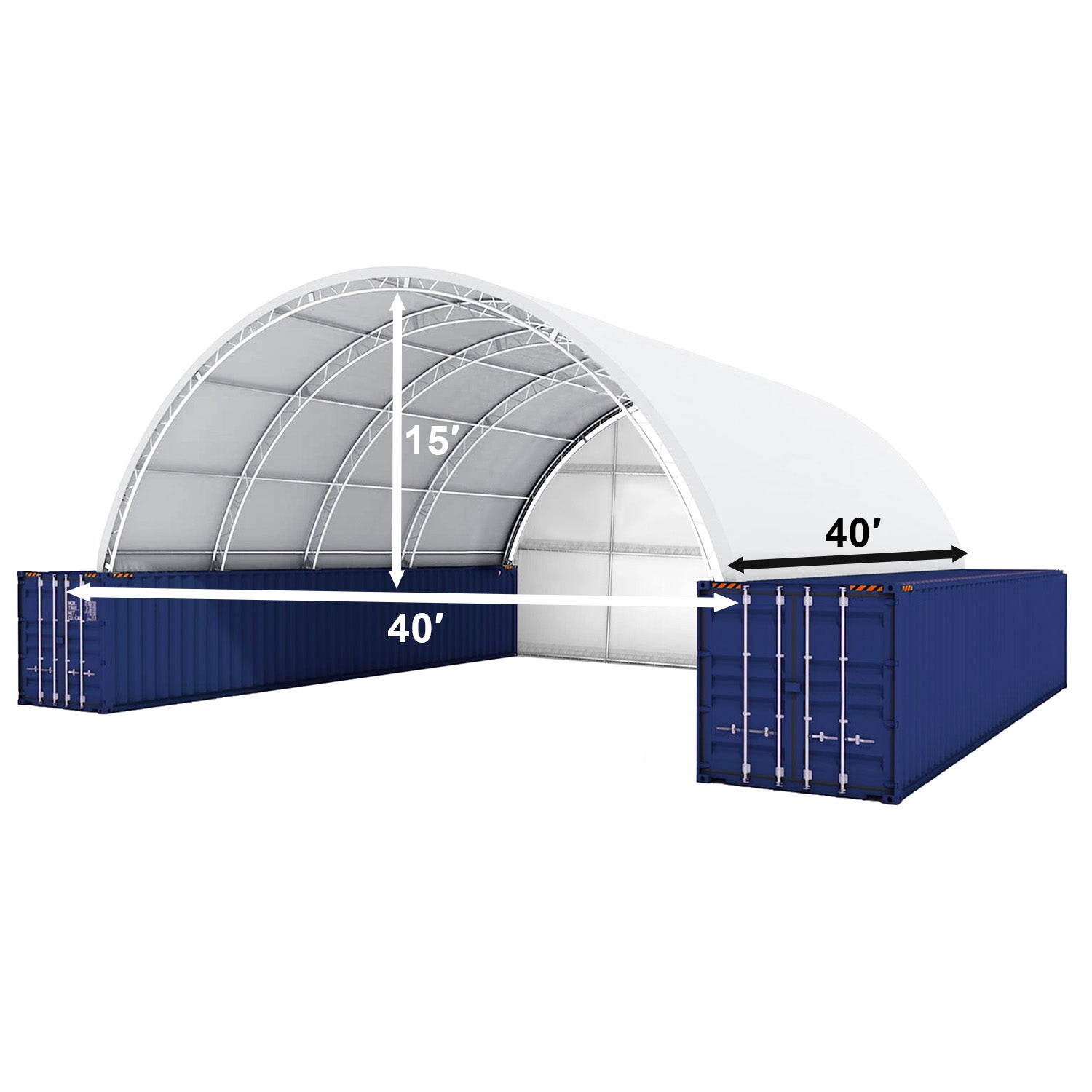

Dimension (ft) W40xL40xH15

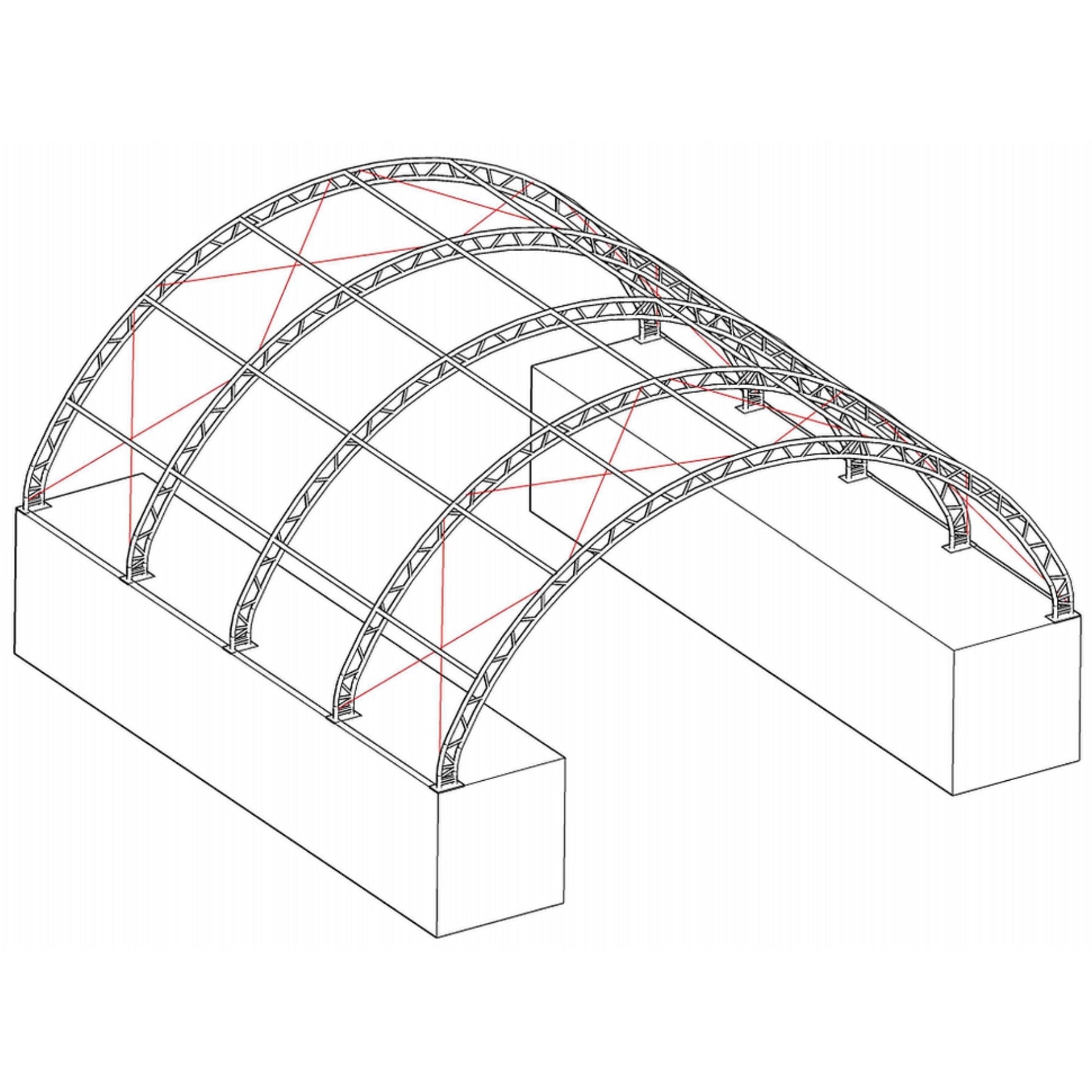

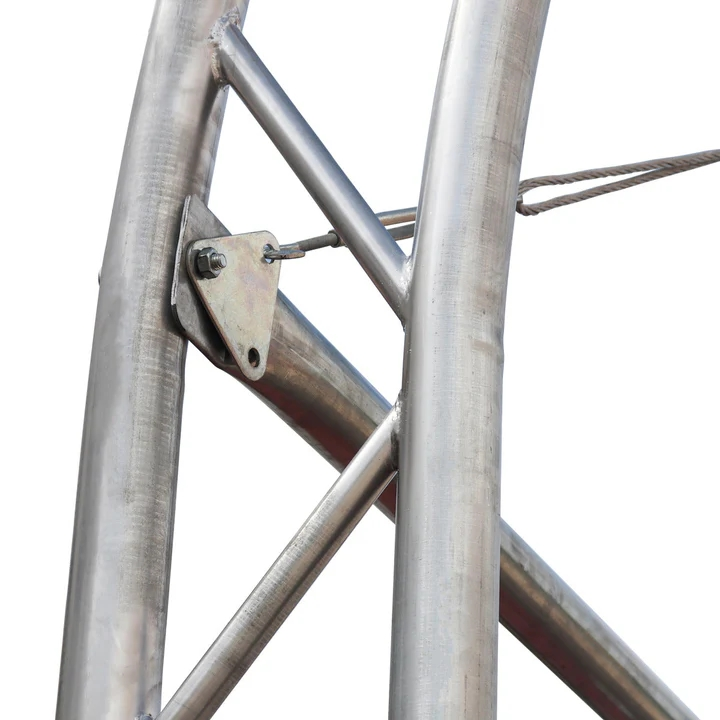

Frame Double Truss Galvanized Tube
Steel Structure High-Grade Hot Dip Galvanized Steel
Fabric
  • Economical - 11oz/m²(300 gsm) Polyethylene (PE) Tarpaulin Fabric
  • Heavy Duty - 15oz/m²(450 gsm) PVC Tarpaulin Fabric
  • Heavy Duty - 22oz/m²(610 gsm) PVC Tarpaulin Fabric
  • Heavy Duty - 23oz/m²(650 gsm) PVC Tarpaulin Fabric
  • Heavy Duty - 32oz/m²(900 gsm) PVC Tarpaulin Fabric
Fabric Feature Waterproof, UV-resistant, Fire-Retardant, Self-Cleaning Property
Temperature Resistance -22 - +158 °F
Front/back walls (optional)
  • Front Panel
  • Rear Panel
Arch Interval 9.8 ft
Arch Ø (mm) Ø60x1.5
Purlin Ø (mm) Ø48x1.5
Tension System Pipe and Ratchet Tie-Down System

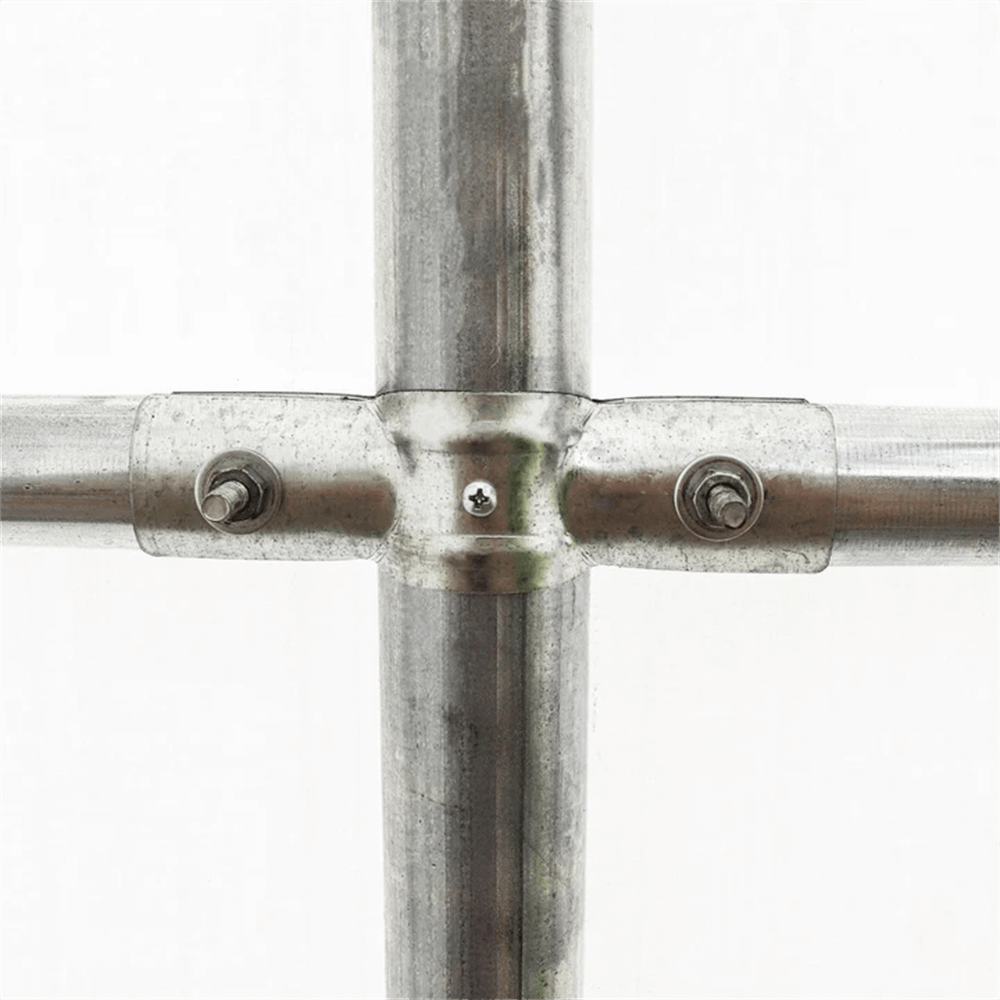

Easy Installation Twist lock and clamp installation
Weld Base plates need to be welded on the Containers.

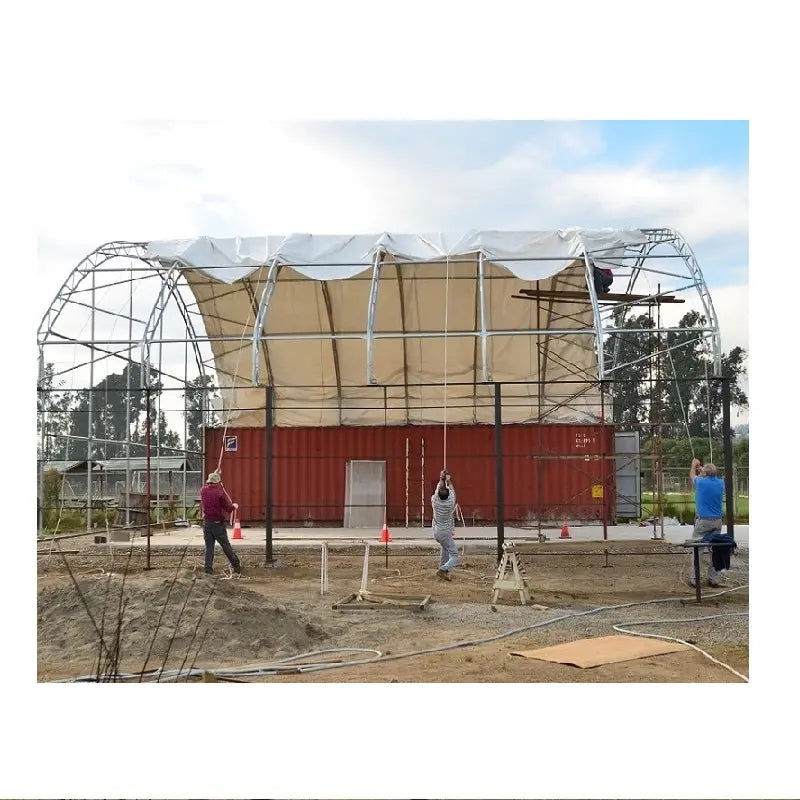

Average assembly time for DIY with 4 persons
  • Shelter: 2 days
  • Front or back wall: ½ day per wall
Safety The tarpaulin is PFAS-free and EU REACH compliant.
Tarp Lifespan 7-10 years, depending on the type of fabric and environmental conditions.
Frame Lifespan 15+ years
Warranty
  • PE: 2 Years Warranty
  • PVC: 8 Years Warranty

Note

  • The term “lifespan” refers to the durability of the materials themselves, not to the installation of the canopy structure.
  • The assembled canopy's structural integrity may be impacted by sudden weather changes (e.g., high winds, heavy snow, rain). Always check the forecast and consider the described limitations.
  • Snow-state (Such as Alaska, Colorado, Vermont, etc)customers are strongly advised to opt for double-truss framing.

Package Size

  • Box 1
    LxWxH (inch): 131x43x31
    Weight (lb): 2100
  • Box 2
    LxWxH (inch): 129x44x13
    Weight (lb): 794
  • A forklift or equivalent is required for unloading.
    40x40x15 ft Container Shelter with Closed Back Panel package size

Optional Parts

  • Front Panel
  • Back Panel
  • Cover Replacement
