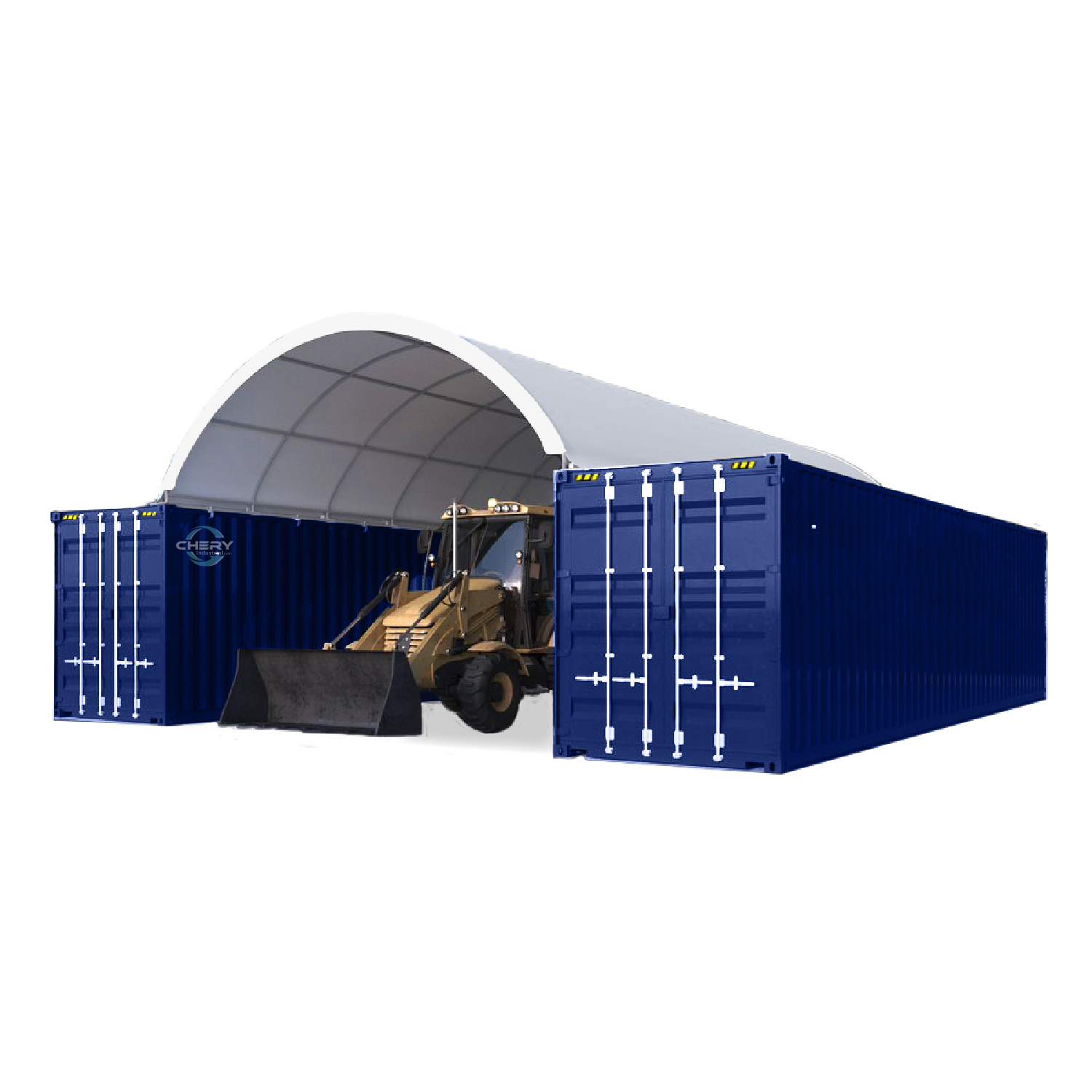

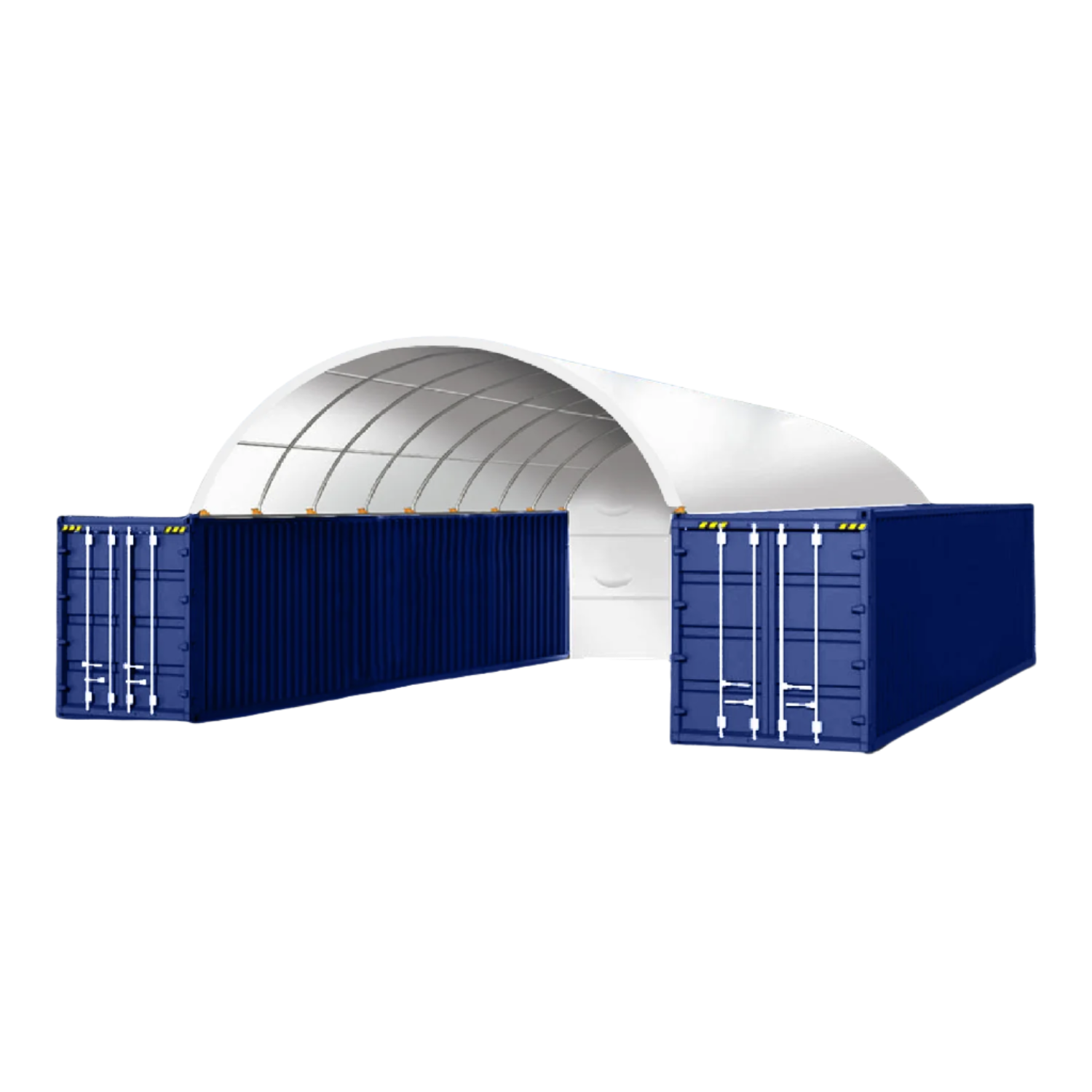

20FT x 40FT Container Shelter with Closed Back Panel

20FT x 40FT Container Shelter with Closed Back Panel

Name: 20FT x 40FT Container Shelter with Closed Back Panel
Brand: Chery Industrial
SKU: SUICS2040OZ11WBP
Price: 1979.4 USD
Availability: InStock

$3,299.00 $1,979.40 Save $1,319.60

Tax included. Shipping calculated at checkout.

Material

11oz PE Shelter with PE Rear Panel

15oz PVC Shelter with PE Rear Panel

18oz PVC Shelter with PE Rear Panel

[{"id":60798161060174,"title":"11oz PE Shelter with PE Rear Panel","option1":"11oz PE Shelter with PE Rear Panel","option2":null,"option3":null,"sku":"SUICS2040OZ11WBP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"20FT x 40FT Container Shelter with Closed Back Panel - 11oz PE Shelter with PE Rear Panel","public_title":"11oz PE Shelter with PE Rear Panel","options":["11oz PE Shelter with PE Rear Panel"],"price":197940,"weight":355163,"compare_at_price":329900,"inventory_management":null,"barcode":"726899413096","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":60798161092942,"title":"15oz PVC Shelter with PE Rear Panel","option1":"15oz PVC Shelter with PE Rear Panel","option2":null,"option3":null,"sku":"SUICS2040OZ15WBP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"20FT x 40FT Container Shelter with Closed Back Panel - 15oz PVC Shelter with PE Rear Panel","public_title":"15oz PVC Shelter with PE Rear Panel","options":["15oz PVC Shelter with PE Rear Panel"],"price":209940,"weight":355163,"compare_at_price":349900,"inventory_management":null,"barcode":"726899413102","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":60798161125710,"title":"18oz PVC Shelter with PE Rear Panel","option1":"18oz PVC Shelter with PE Rear Panel","option2":null,"option3":null,"sku":"SUICS2040OZ18WBP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"20FT x 40FT Container Shelter with Closed Back Panel - 18oz PVC Shelter with PE Rear Panel","public_title":"18oz PVC Shelter with PE Rear Panel","options":["18oz PVC Shelter with PE Rear Panel"],"price":221940,"weight":355163,"compare_at_price":369900,"inventory_management":null,"barcode":"726899413119","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

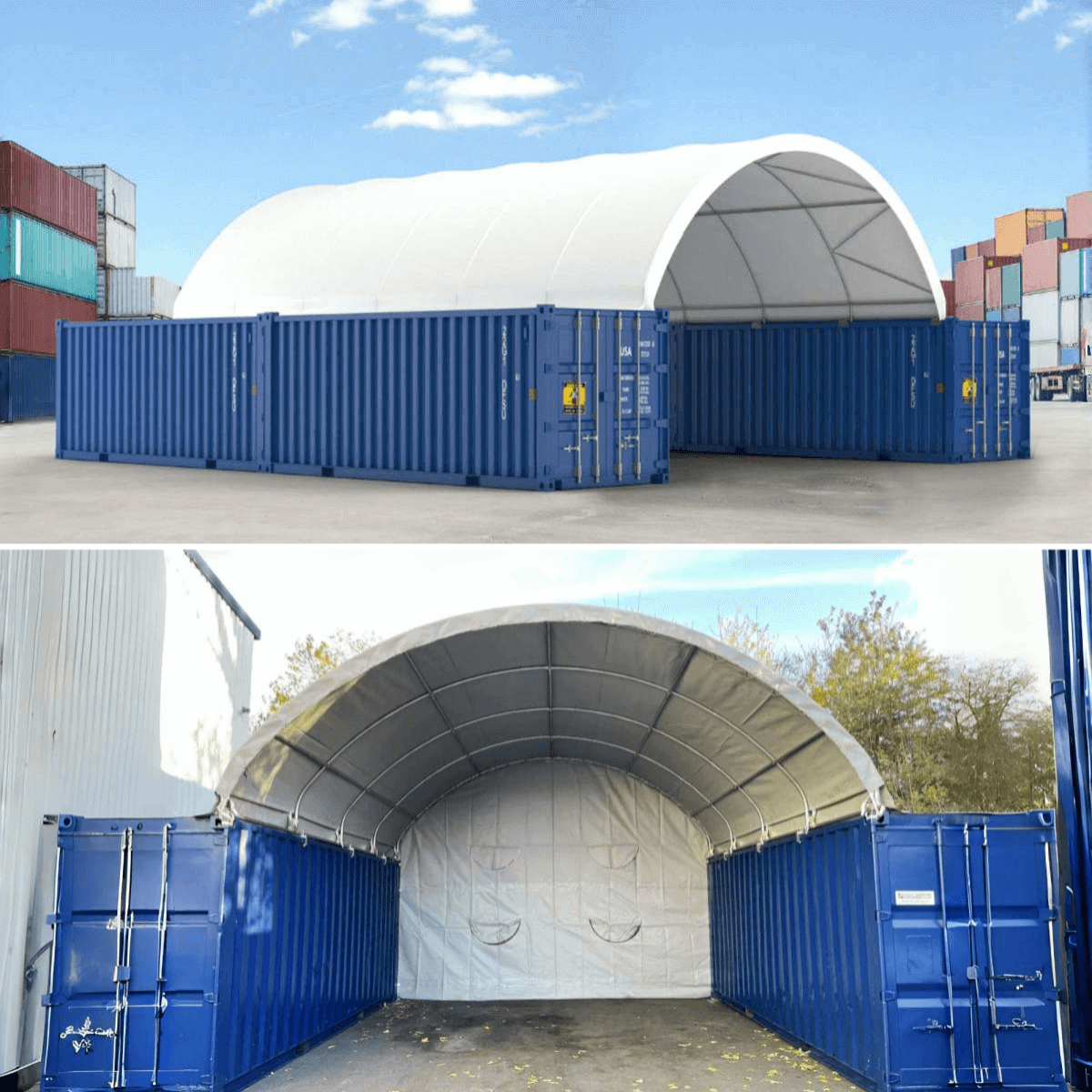

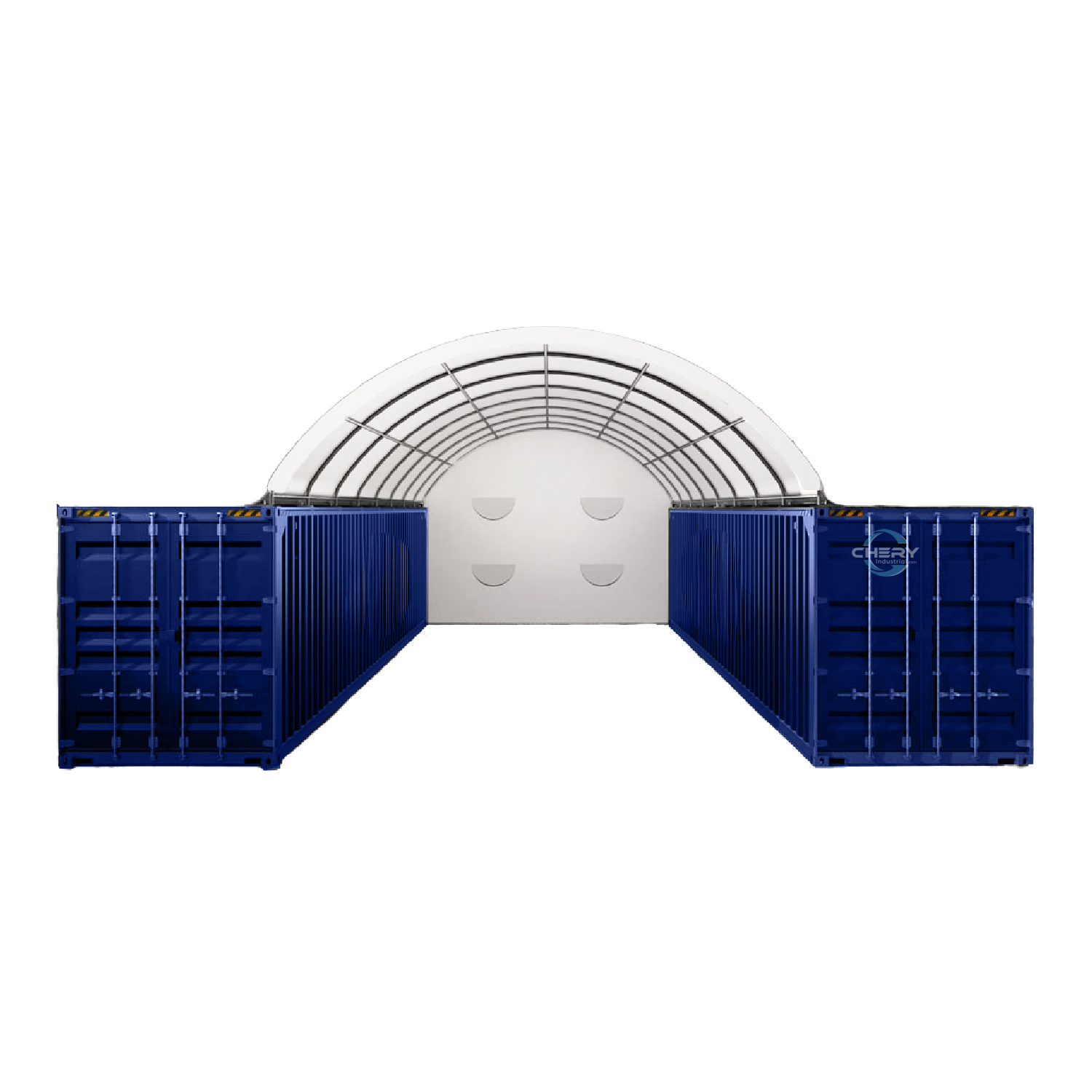

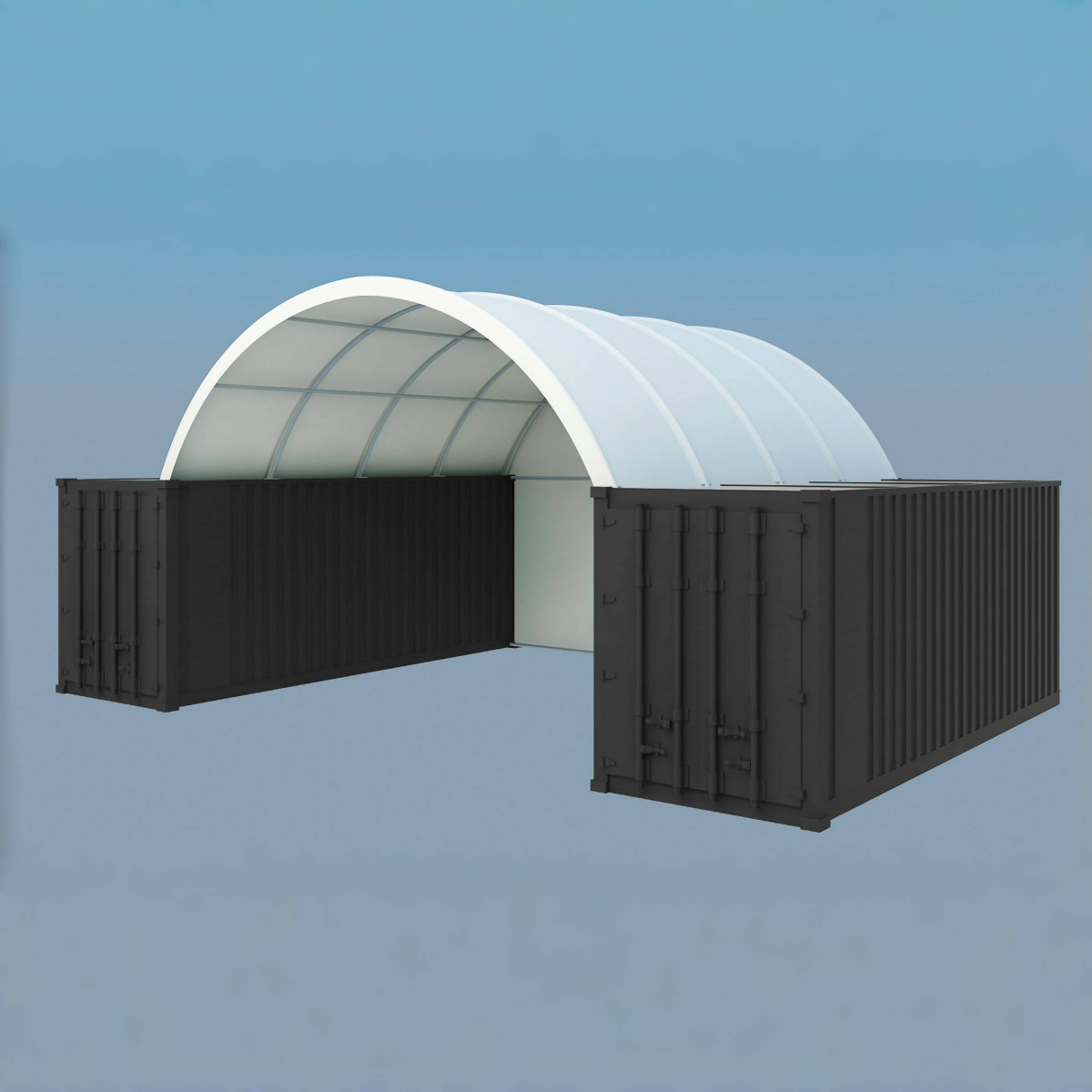

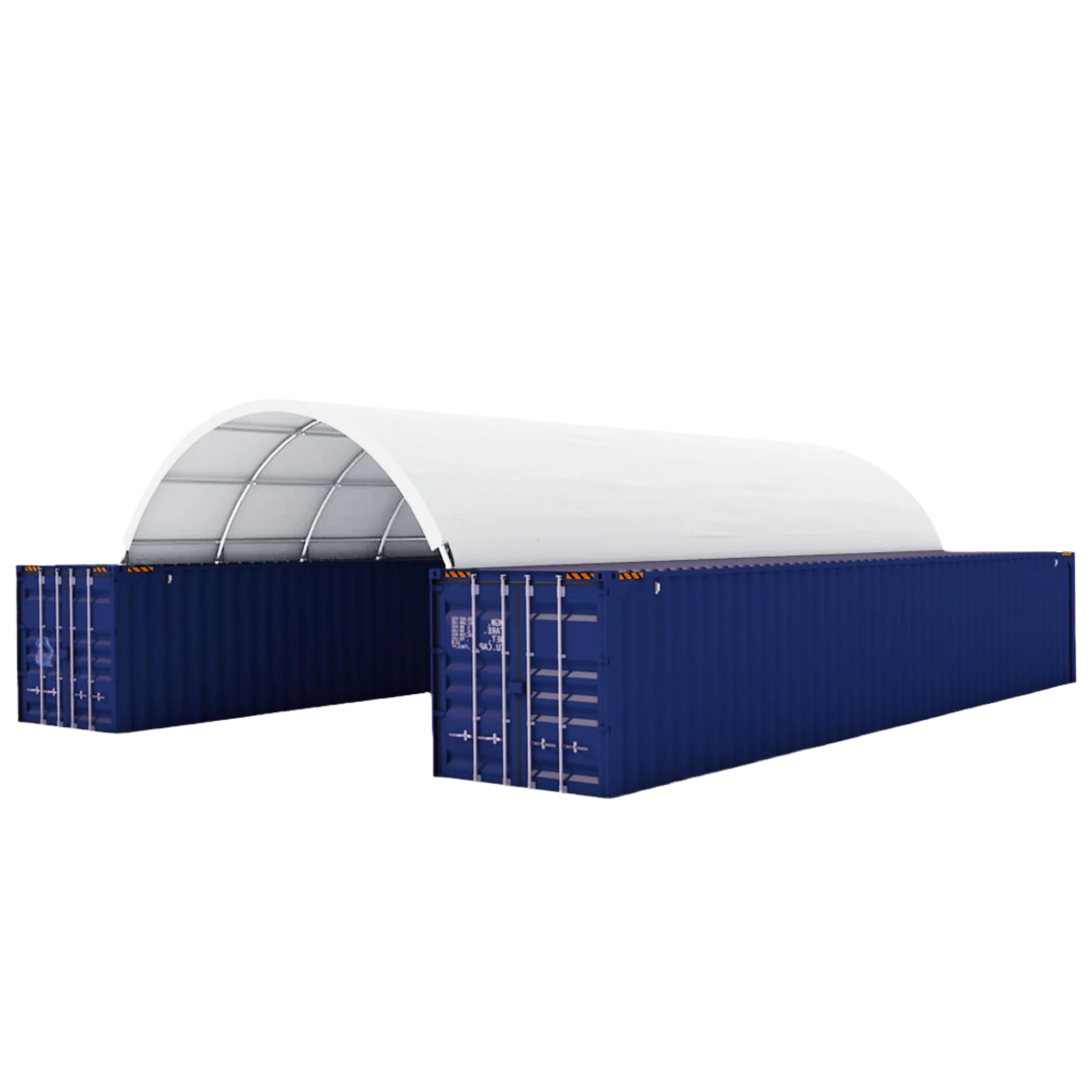

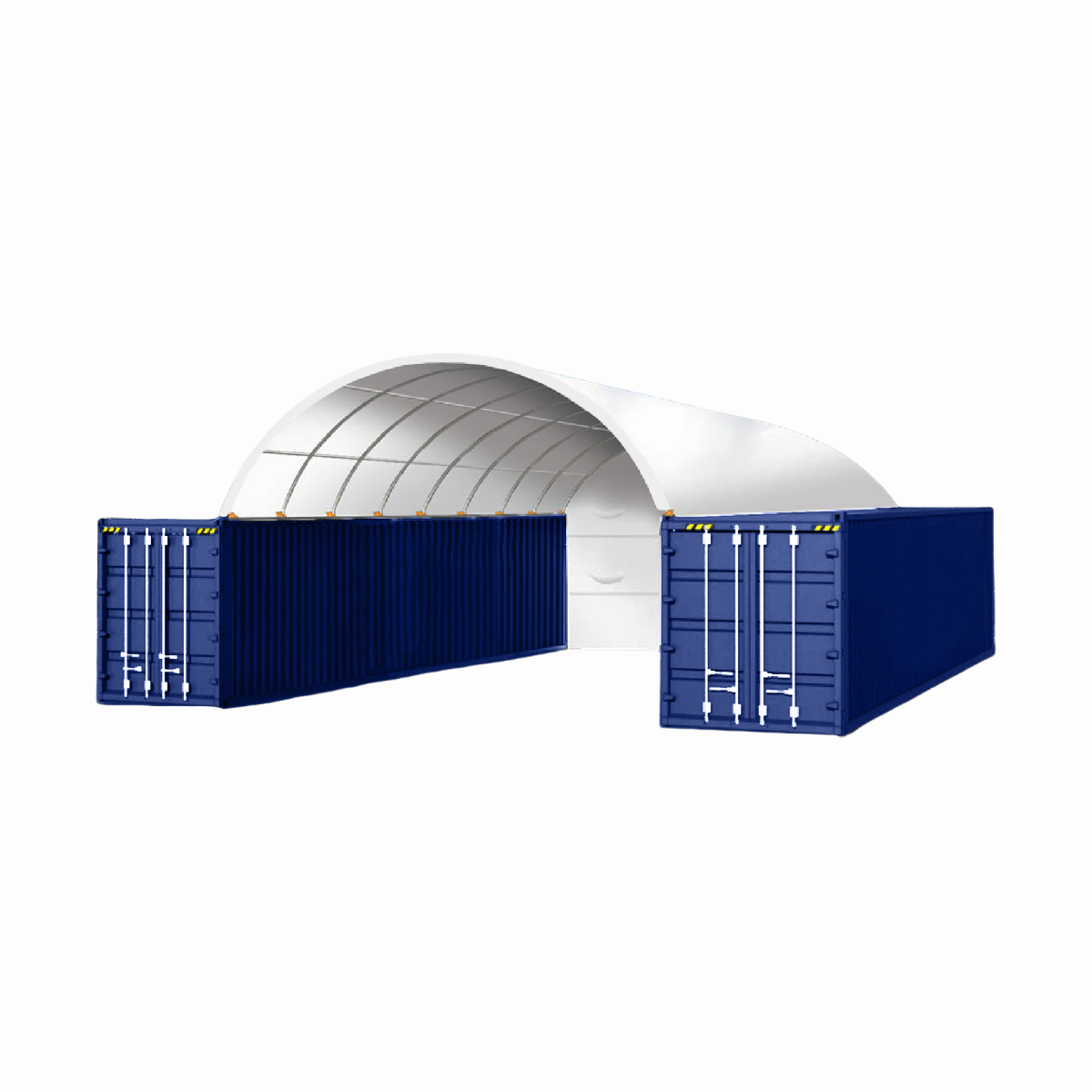

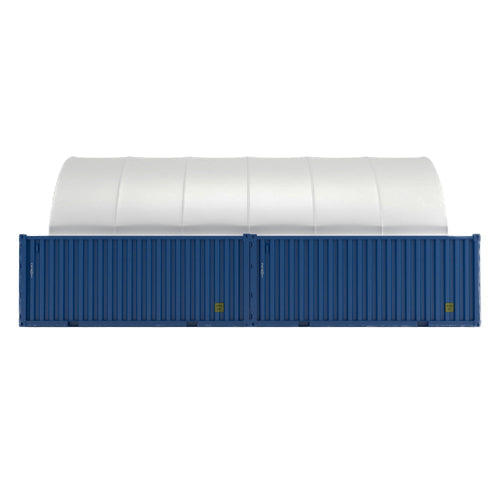

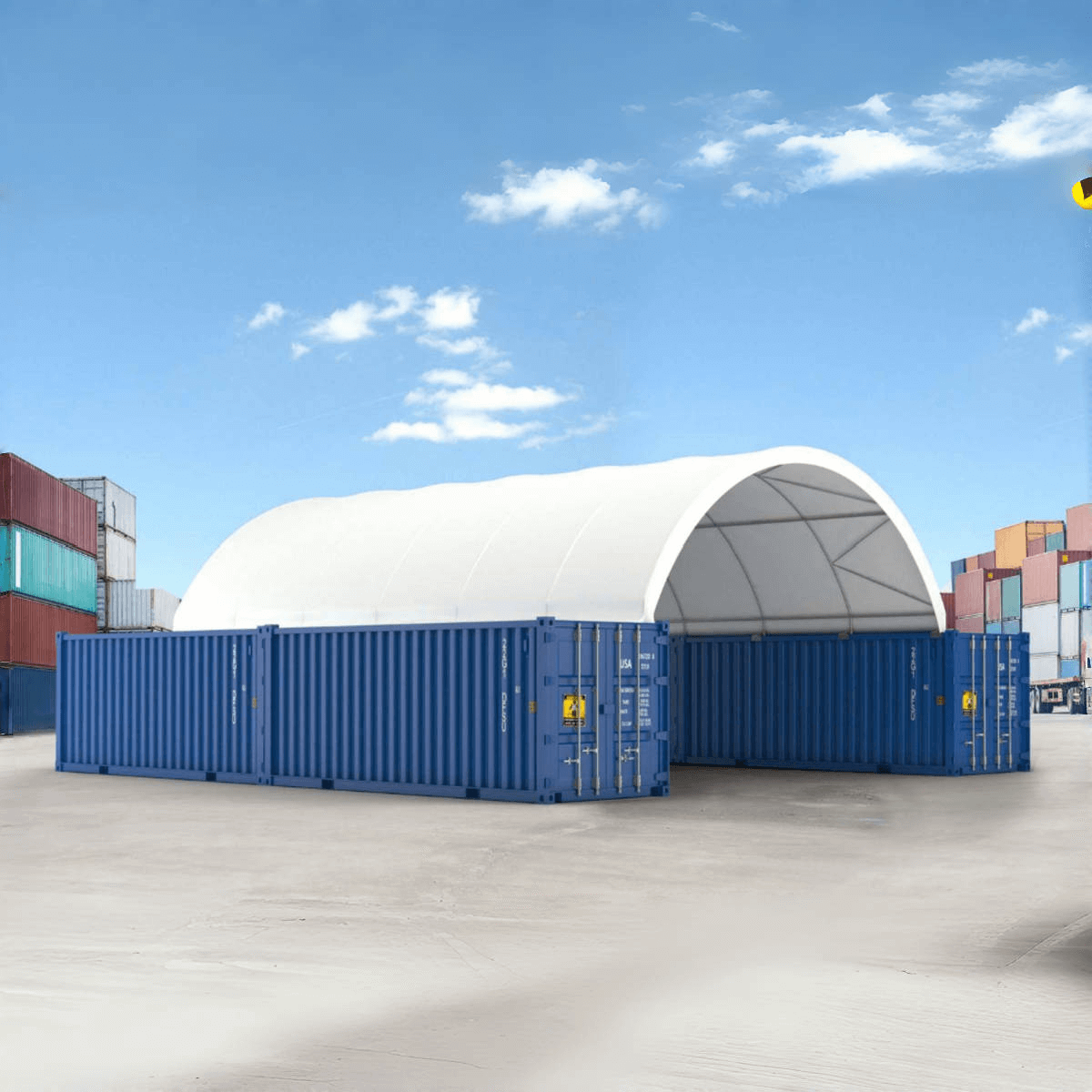

The 20x40 ft Container Shelter with Closed Back Panel boasts versatile tarpaulins in various materials and a robust PE back panel. This spacious, durable shelter provides excellent protection, making it ideal for diverse applications in any environment.

Installation Manual

Specification

Description	Specifications
Model	C2040 Dome Container Shelter

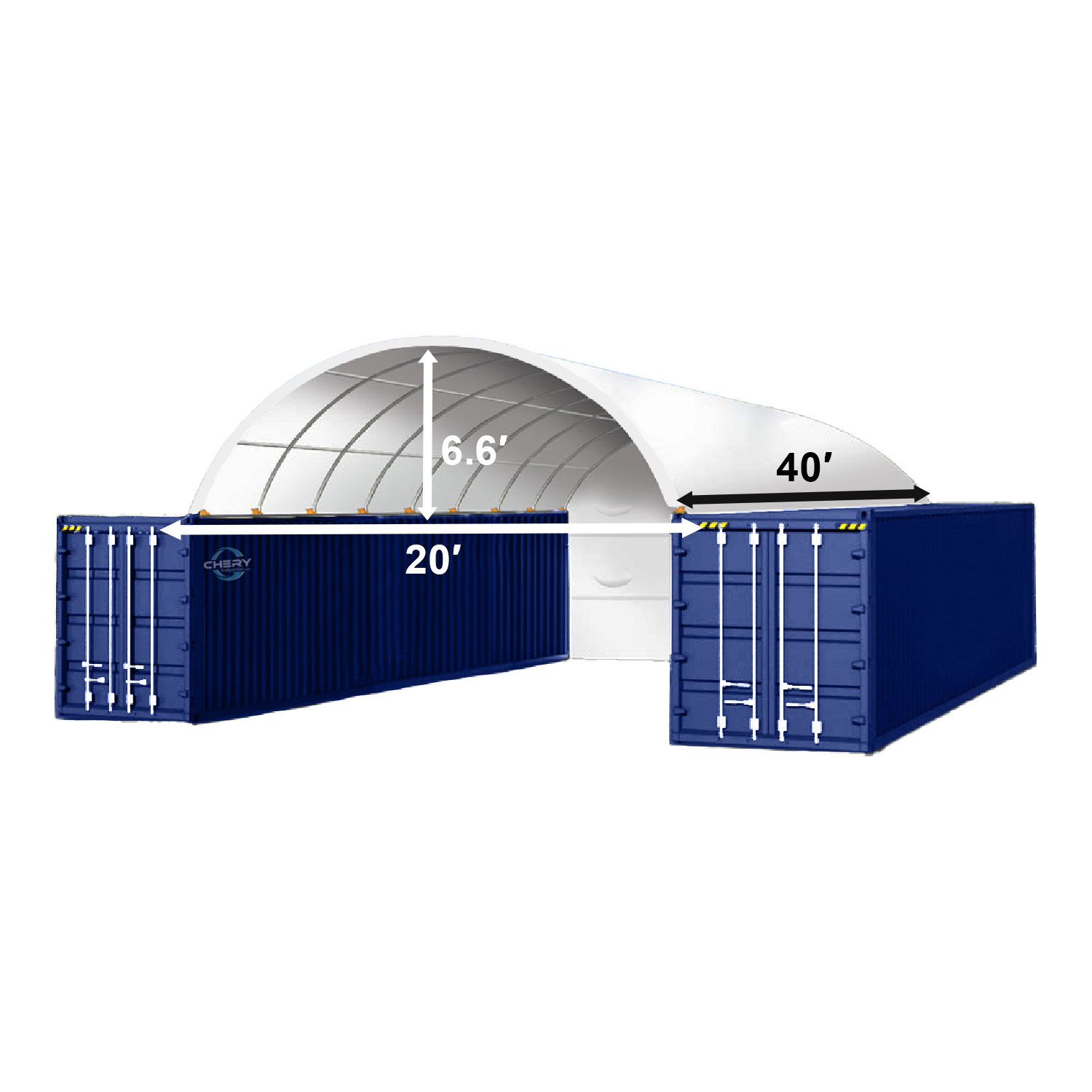

Dimension (ft)	W20xL40xH6.6
Frame	Single Truss Galvanized Tube
Steel Structure	High-Grade Hot Dip Galvanized Steel
Fabric	Economical - 11oz/m²(300 gsm) Polyethylene (PE) Tarpaulin Fabric Heavy Duty - 15oz/m²(420 gsm) PVC Tarpaulin Fabric Heavy Duty - 22oz/m²(610 gsm) PVC Tarpaulin Fabric Heavy Duty - 23oz/m²(650 gsm) PVC Tarpaulin Fabric Heavy Duty - 32oz/m²(900 gsm) PVC Tarpaulin Fabric
Fabric Feature	Waterproof, UV-resistant, Fire-Retardant, Self-Cleaning Property
Temperature resistance	-22 - +158 °F
Front/back walls (optional)	Front Panel Half Panel Rear Panel
Arch Interval	5 ft
Arch Ø (mm)	Ø45x1.5
Purlin Ø (mm)	Ø32x1.2
Tension System	Pipe and Ratchet Tie-Down System

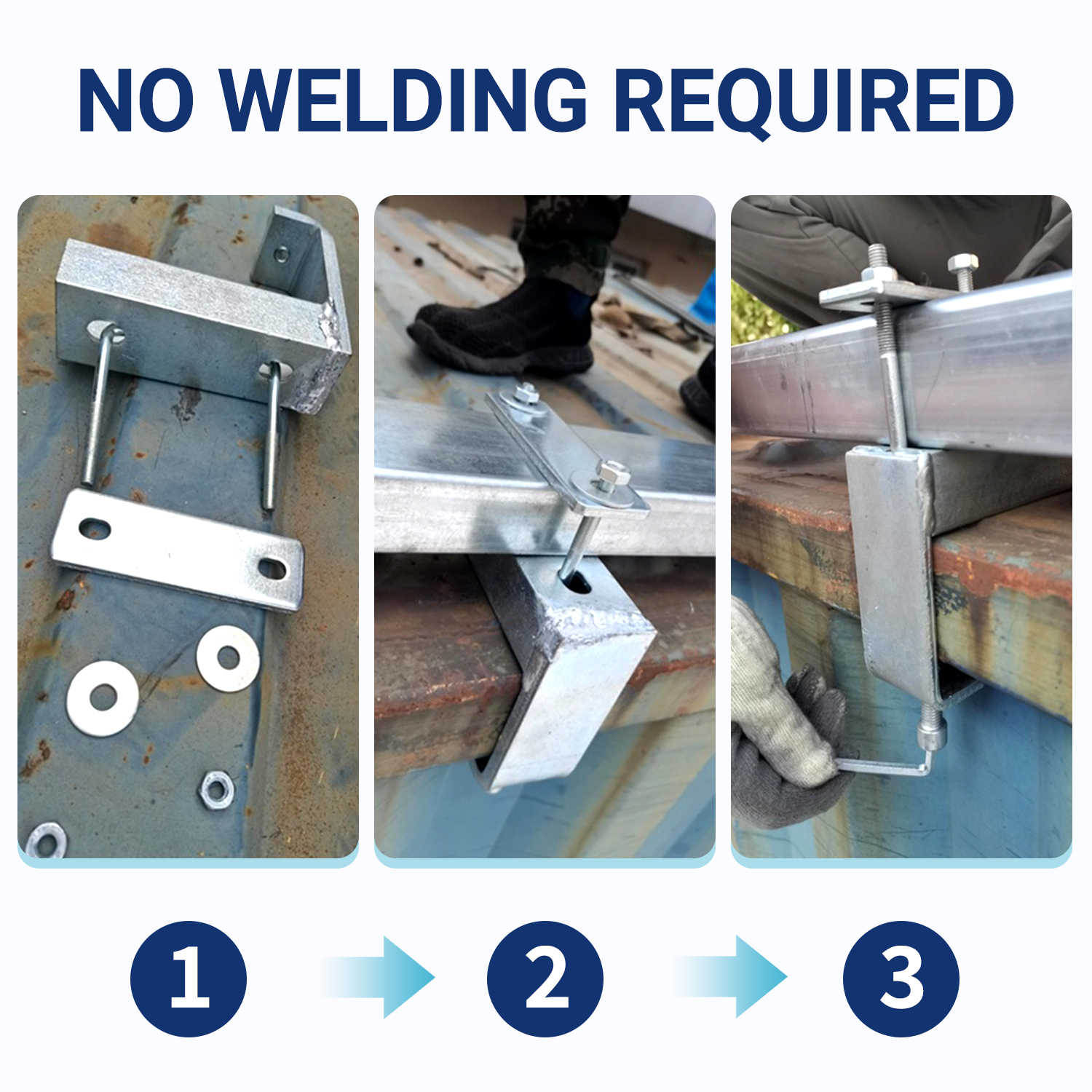

Easy Installation	Twist lock and clamp installation
Weld	No welding required
Snow Load	48 lbs/ft²
Wind Load	50 miles/h
Average assembly time for DIY with 4 persons	Max. 1 day
Safety	The tarpaulin is PFAS-free and EU REACH compliant.
Tarp Lifespan	7-10 years, depending on the type of fabric and environmental conditions.
Frame Lifespan	15+ years
Warranty	PE: 2 Years Warranty PVC: 8 Years Warranty

Note

The term “lifespan” refers to the durability of the materials themselves, not to the installation of the canopy structure.
The assembled canopy's structural integrity may be impacted by sudden weather changes (e.g., high winds, heavy snow, rain). Always check the forecast and consider the described limitations.

Feature

Style: Pony Wall.
The tarpaulin is PFAS-free and EU REACH compliant.
CSA/TUV Snow Rating Report.
SGS fabric Certificate.
No pole inside, and 100% of the interior space is available.

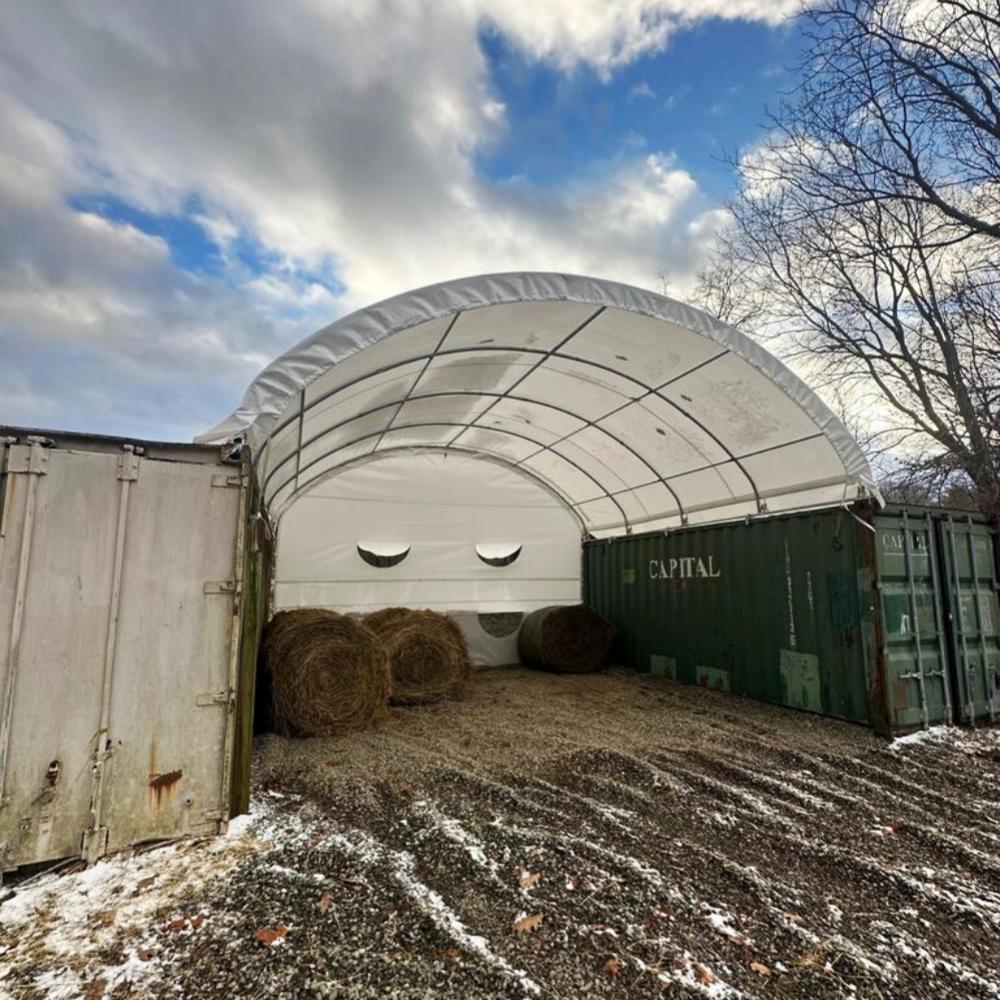

Usage: Warehouse, farm tent, equipment storage, car lot, temporary office, livestock house, workshop, parties, big event.

Package Size

Box A:

LxWxH (inch): 75x30x20
Weight (lb): 805
A forklift or equivalent is required for unloading

Box B:

LxWxH(inch): 76x28.5x6
Weight(lb): 86

A forklift or equivalent is required for unloading.

Parts

Cover replacement
Front Panel
Rear Panel
Half Panel
